Primary A/C System

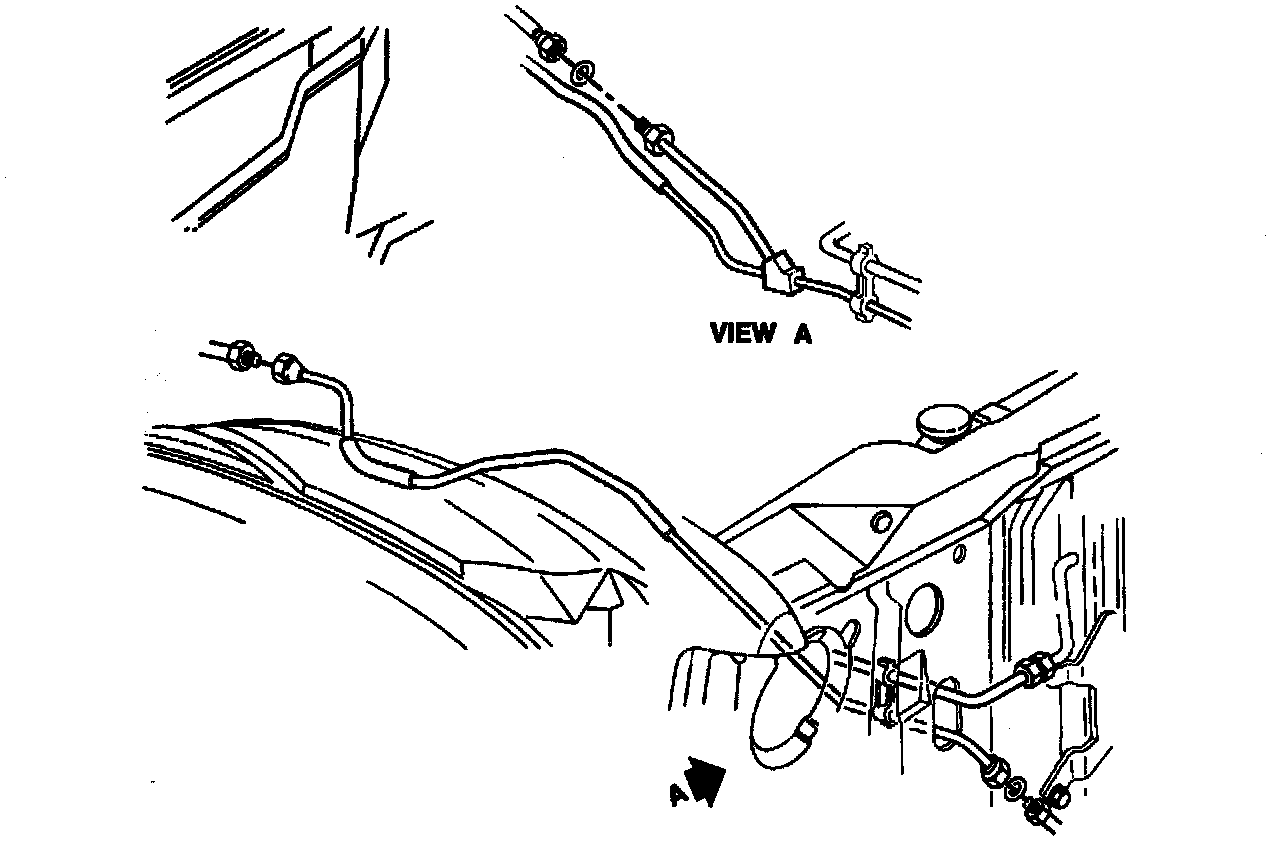

Evaporator Tube:

Remove or Disconnect
1. Negative battery cable.
2. Recover refrigerant.
3. Auxiliary heater pipe, if equipped.
4. Coolant recovery reservoir.
5. Evaporator tube from evaporator.
6. O-ring seal.
7. Evaporator tube from condenser.
8. O-ring seal.

Install or Connect
1. Evaporator tube into clip.
2. New O-ring seal.

- Coat O-ring seal with 525 viscosity refrigerant oil.

3. Evaporator tube to condenser.

Tighten
- Evaporator tube to 24 Nm (18 lb ft).

4. New O-ring seal.

- Coat O-ring seal with 525 viscosity refrigerant oil.

5. Evaporator tube to evaporator.

Tighten
- Evaporator tube to 24 Nm (18 lb ft).

6. Coolant recovery reservoir.
7. Auxiliary heater pipe, if equipped.
8. Negative battery cable.
9. Charge system.

- Check system for leaks.
