Front Auxiliary

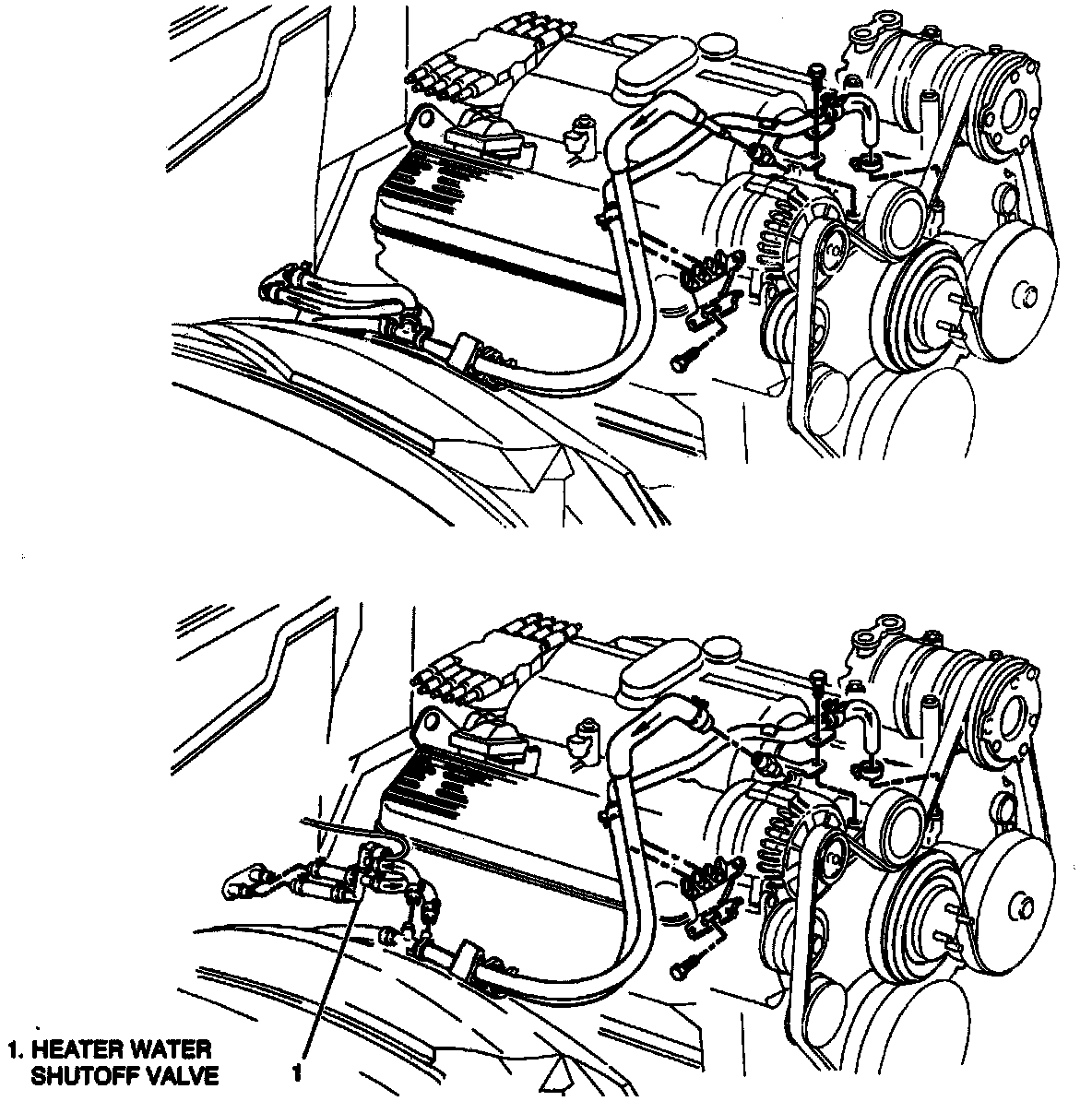

Auxiliary Heater Hose Routing, Typical:

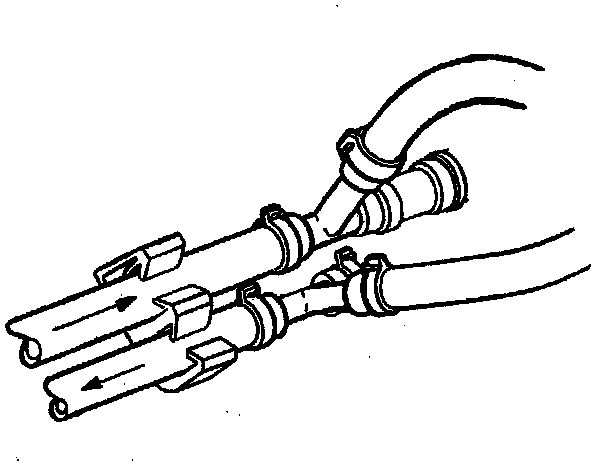

Auxiliary Heater Hose Water Flow:

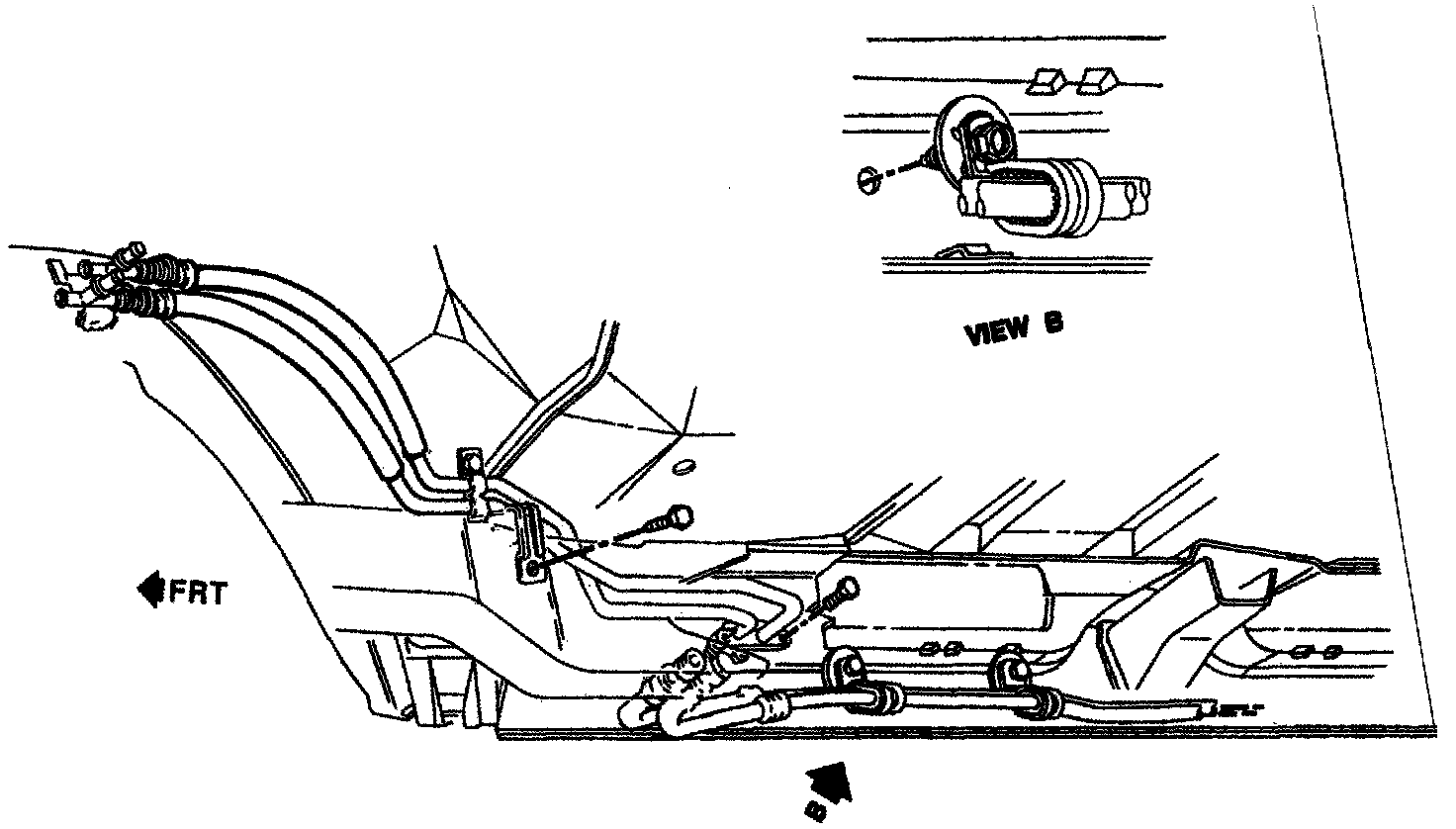

Auxiliary Heater Hose Assembly Routing (Front):

Remove or Disconnect
- Raise the vehicle and support with suitable safety stands.
1. Engine coolant.
2. Right front wheelhouse.
3. Bolts.
4. Hose clamps.
5. Heater inlet hose from tee fittings.
6. Heater outlet hose at tee fitting.

Install or Connect
1. Heater outlet hose to tee fittings.
2. Heater inlet hose to tee fittings.
3. Hose clamp bolts.

Tighten
- Bolts to 17 Nm (13 lb ft).

4. Right front wheelhouse.
5. Engine coolant.

- Lower the vehicle.
- Check the system for leaks.
