Front Auxiliary Hoses

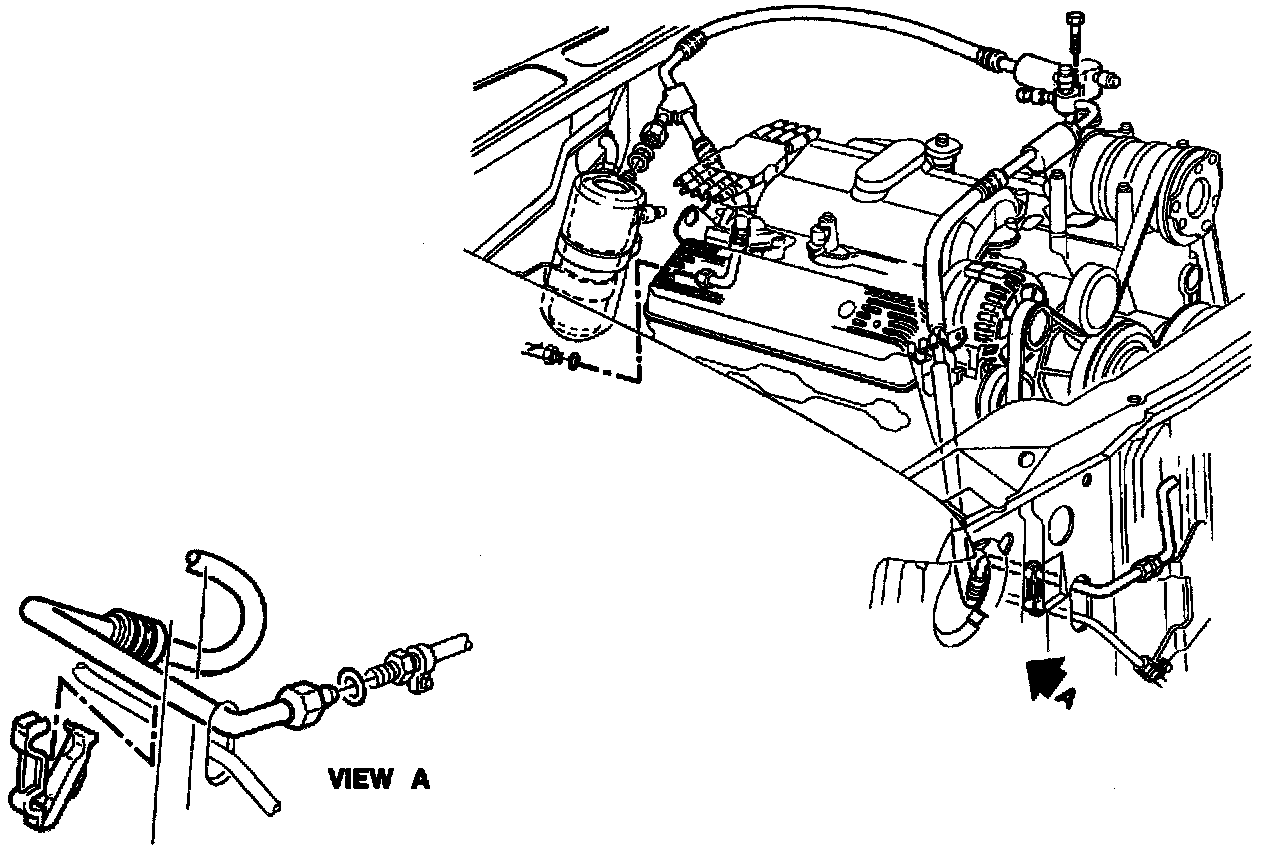

Compressor And Condenser Hose Assembly (5.7L Engines W/Aux. A/C):

Remove or Disconnect
1. Recover refrigerant.
2. Bolt.
3. Hose assembly from the top of the compressor.
4. Sealing washers.
5. Hose from accumulator using J 38042.
6. O-ring seals from accumulator hose.
7. Hose from aux. A/C line using J 38042.
8. O-ring seals from hose.
9. Hose from clip.
10. Hose from bracket, if equipped with diesel engine.
11. Hose assembly from condenser.
12. O-ring seal.
- Cap or plug all open connections.

Install or Connect
1. New O-ring seals to Aux. A/C hose.
- Coat O-ring seal with 525 viscosity refrigerant oil.

2. Hose assembly to Aux. A/C line.

Tighten
- Hose assembly to 24 Nm (18 lb ft).

3. New O-ring seal to condenser hose.
- Coat O-ring seal with 525 viscosity refrigerant oil.

4. Hose assembly to condenser.

Tighten
- Hose assembly to 24 Nm (18 lb ft).

5. New O-ring seals to accumulator hose.
- Coat O-ring seal with 525 viscosity refrigerant oil.

6. Hose assembly to accumulator.

Tighten
- Hose assembly to 24 Nm (18 lb ft).

7. Sealing washers.
8. Hose assembly to top of the compressor.
9. Bolt.

Tighten
- Bolt to 34 Nm (25 lb ft).

10. Charge system.
- Check system for leaks.
