Auxiliary A/C System

Remove or Disconnect
1. Negative battery cable.
2. Right rear quarter trim panel cover.
3. Rear quarter interior trim, as necessary.
4. Electrical connectors, as necessary.

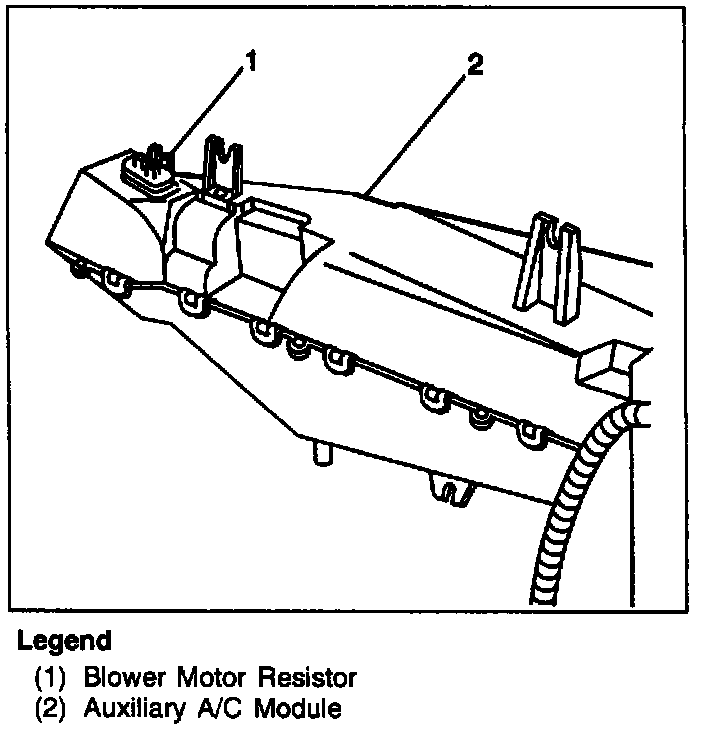

5. Blower motor resistor screws.
6. Blower motor resistor.


Install or Connect
1. Blower motor resistor.
2. Blower motor resistor screws.

Tighten
- Screws to 1.4 Nm (12 lb in).

3. Electrical connectors, as necessary.
4. Rear quarter interior trim, as necessary.
5. Right rear quarter trim panel cover.
6. Negative battery cable.
- Check circuit operation.
