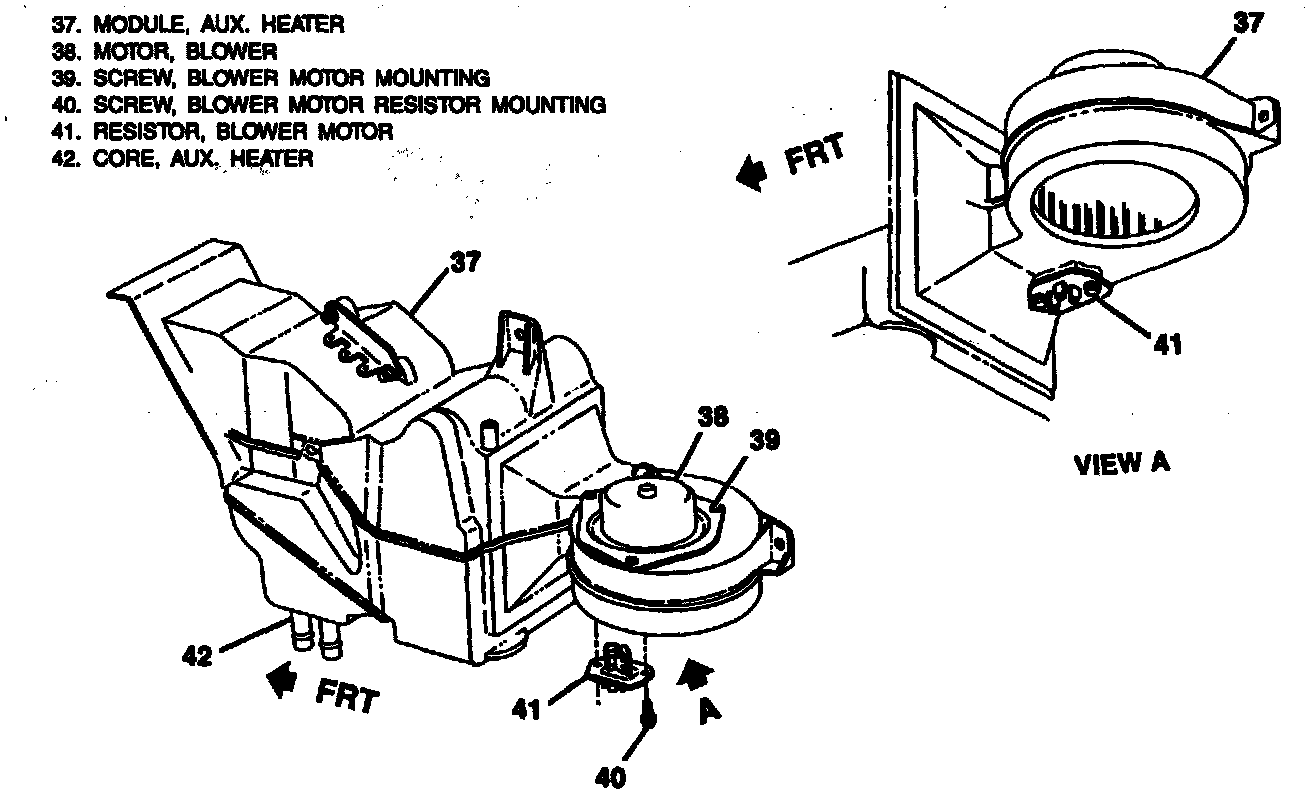

Auxiliary Heating System

Remove or Disconnect
1. Negative battery cable.
2. Right rear quarter trim panel cover.
3. Electrical connectors, as necessary.
4. Screws.
5. Blower motor resistor.

Install or Connect
1. Blower motor resistor.
2. Screws.

Tighten
- Screws to 1.4 N.m (12 lb in).

3. Electrical connectors, as necessary.
4. Right rear quarter trim panel cover.
5. Negative battery cable.
6. Check circuit operation.
