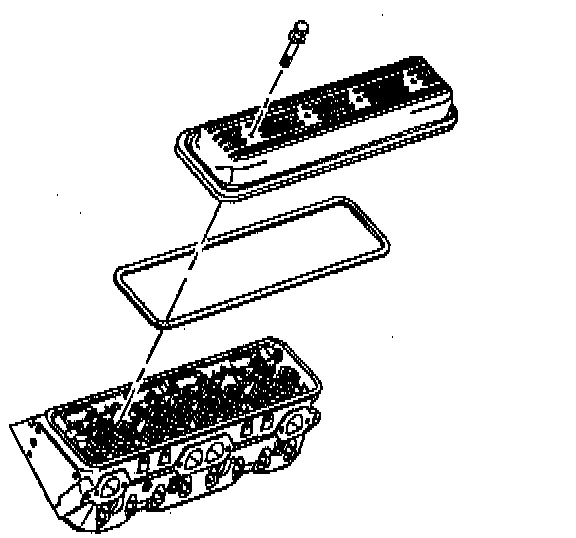

Replacement, Engine Overhaul






REMOVAL
1. Remove the valve rocker arm cover bolts.
2. Remove the valve rocker arm cover.
3. Remove and discard the gasket.

INSTALLATION

NOTE: Always Install a new valve rocker arm cover gasket.

1. Install the new valve rocker arm cover gasket.
2. Install the valve rocker arm cover.
3. Install the valve rocker arm cover bolts.
- Tighten the bolts to 12 Nm (106 inch lbs.).
