Chevy Truck
>>
1997
>>
C 2500 Suburban 2WD V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>

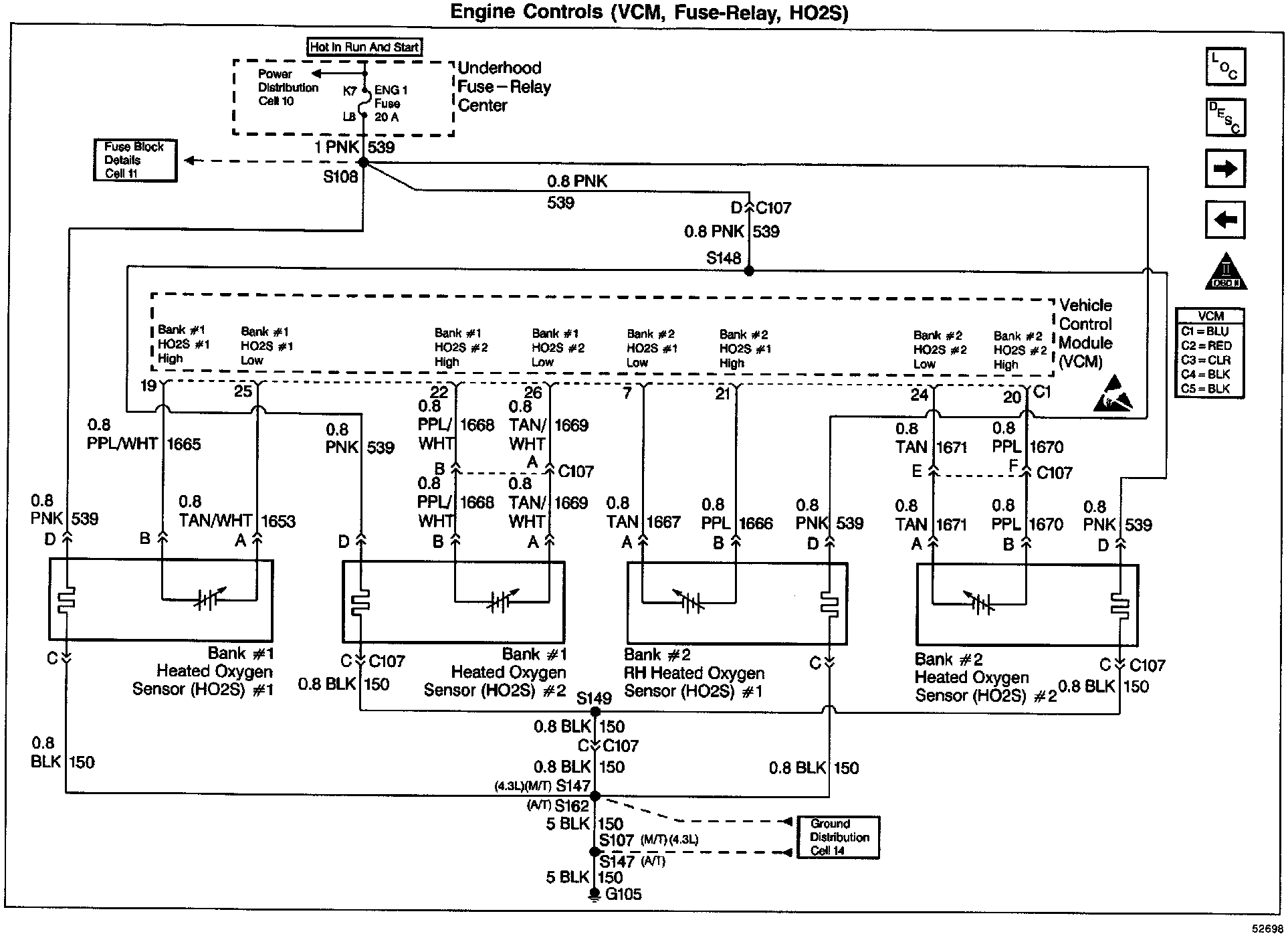

Fuse-Relay, HO2S
Fuse-Relay, HO2S
