Home >> Chevy Truck >> 1997 >> C 2500 Suburban 2WD V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Keyless Entry

Keyless Entry

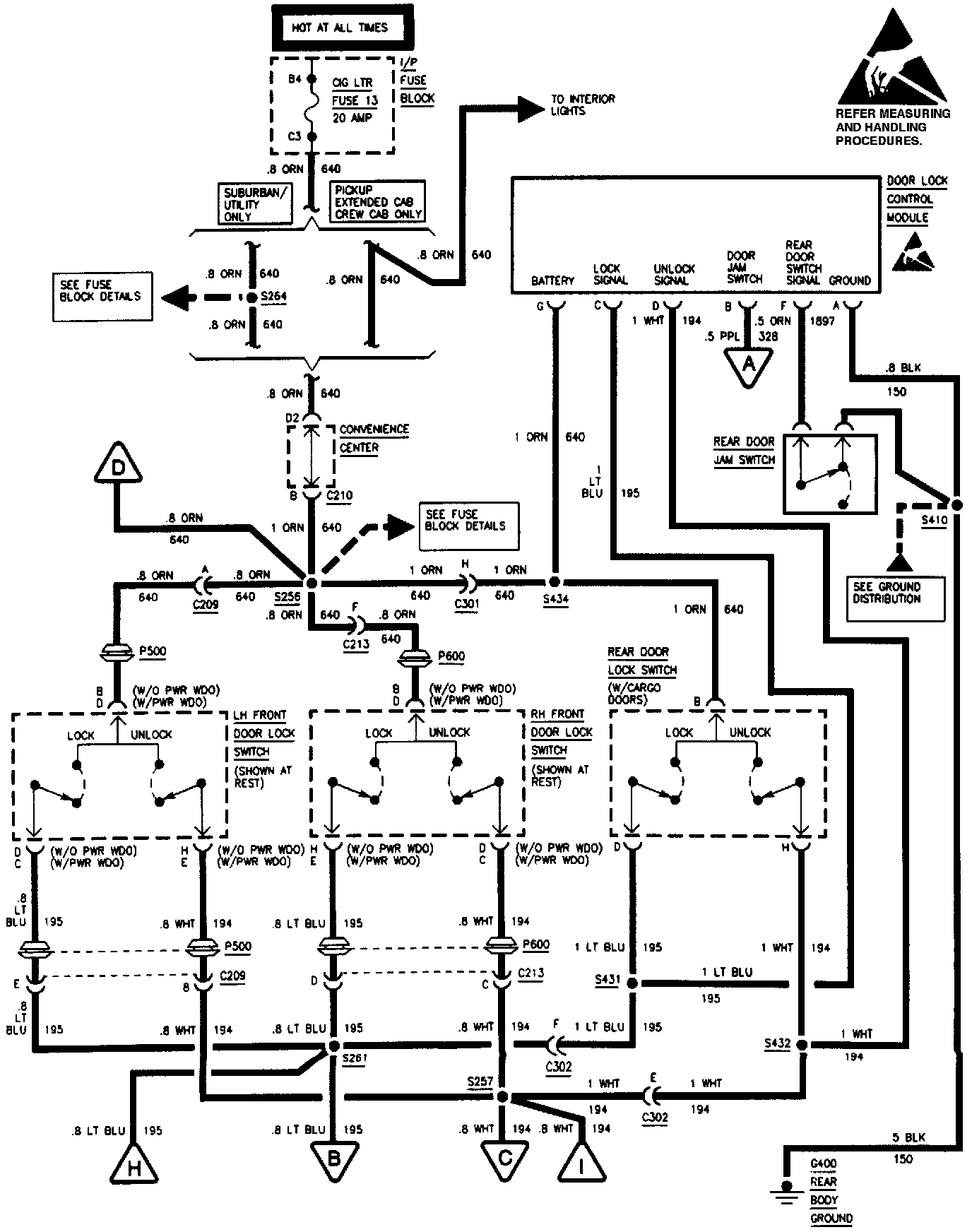

Remote Keyless Entry:

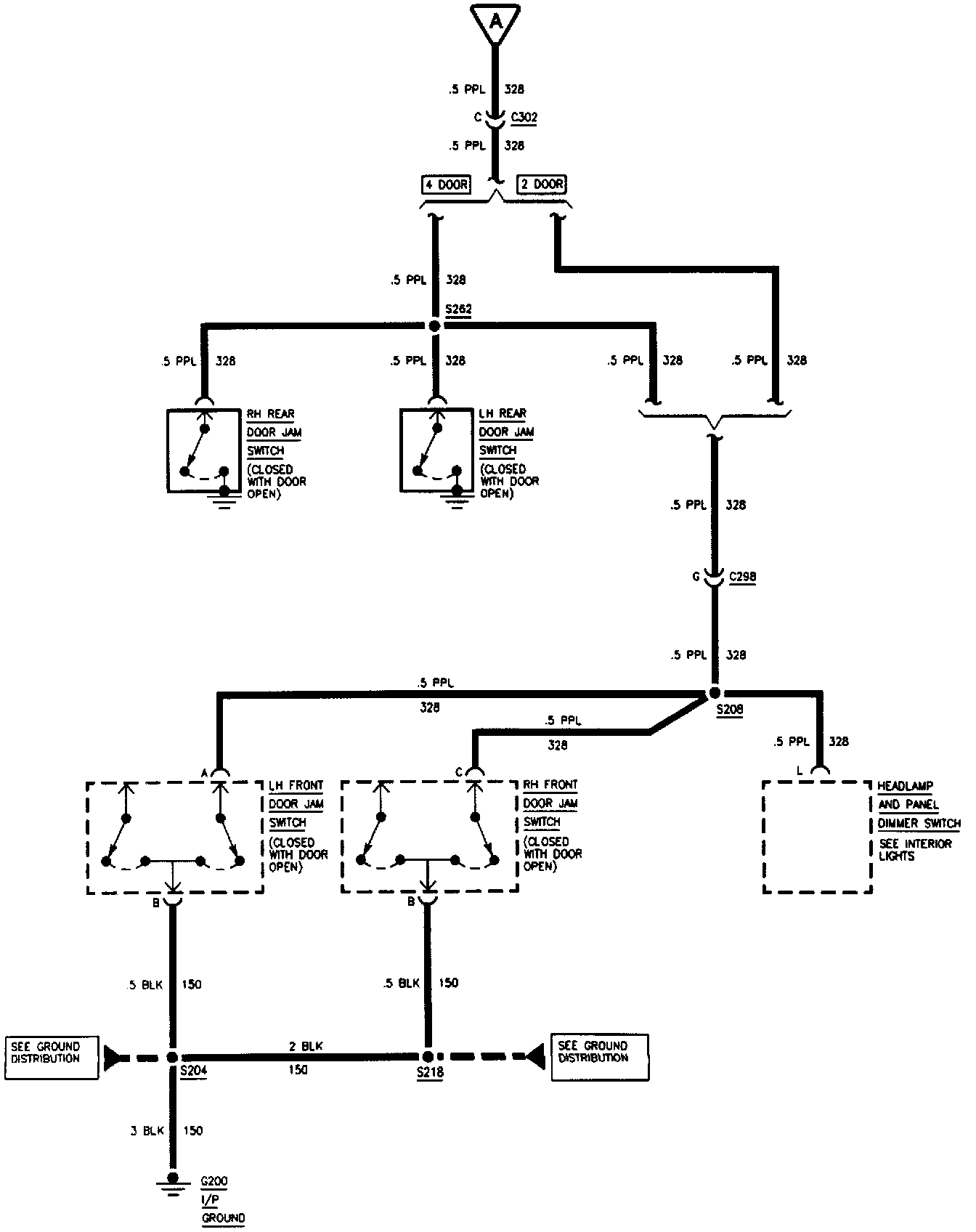

Remote Keyless Entry:

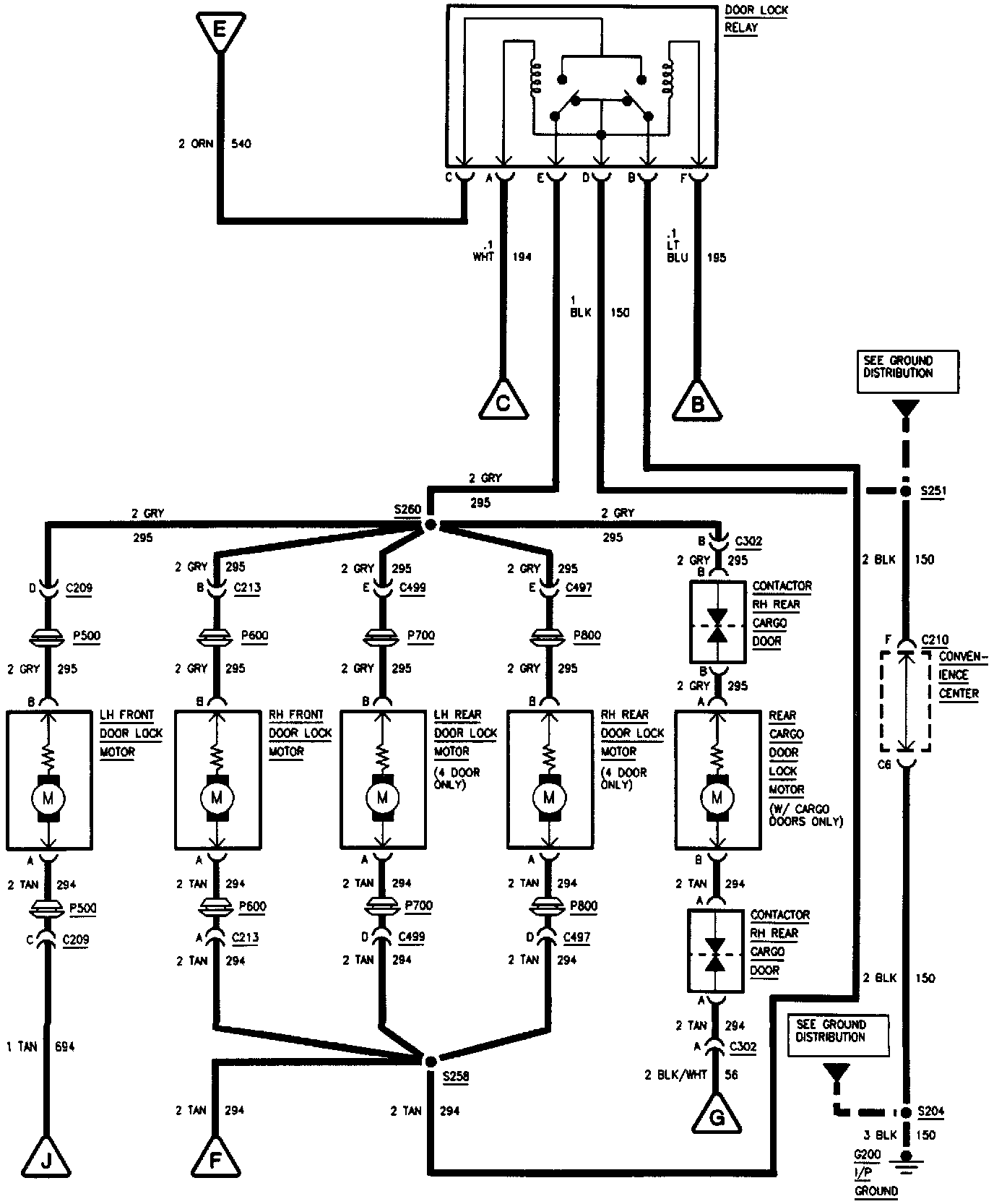

Remote Keyless Entry:

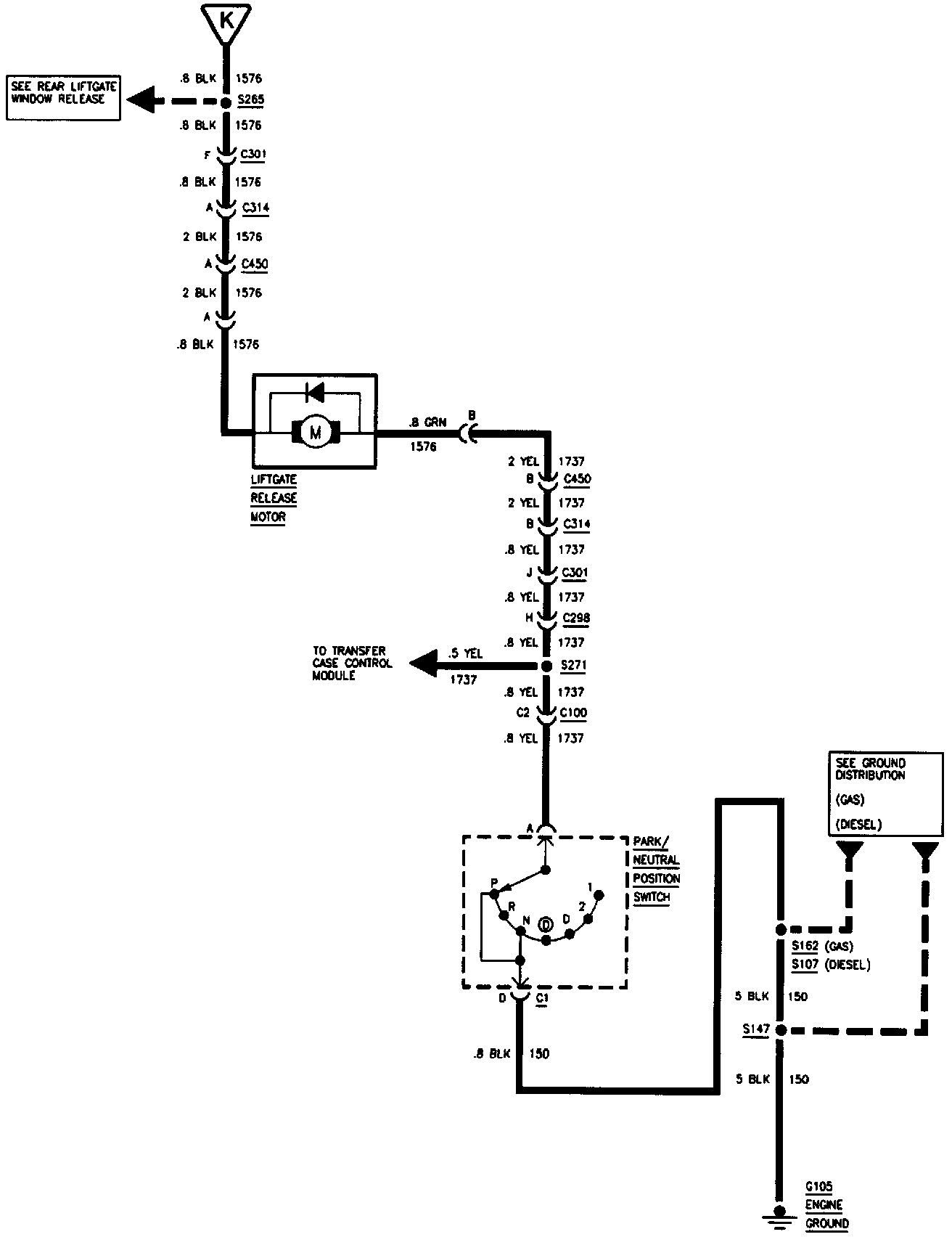

Remote Keyless Entry:

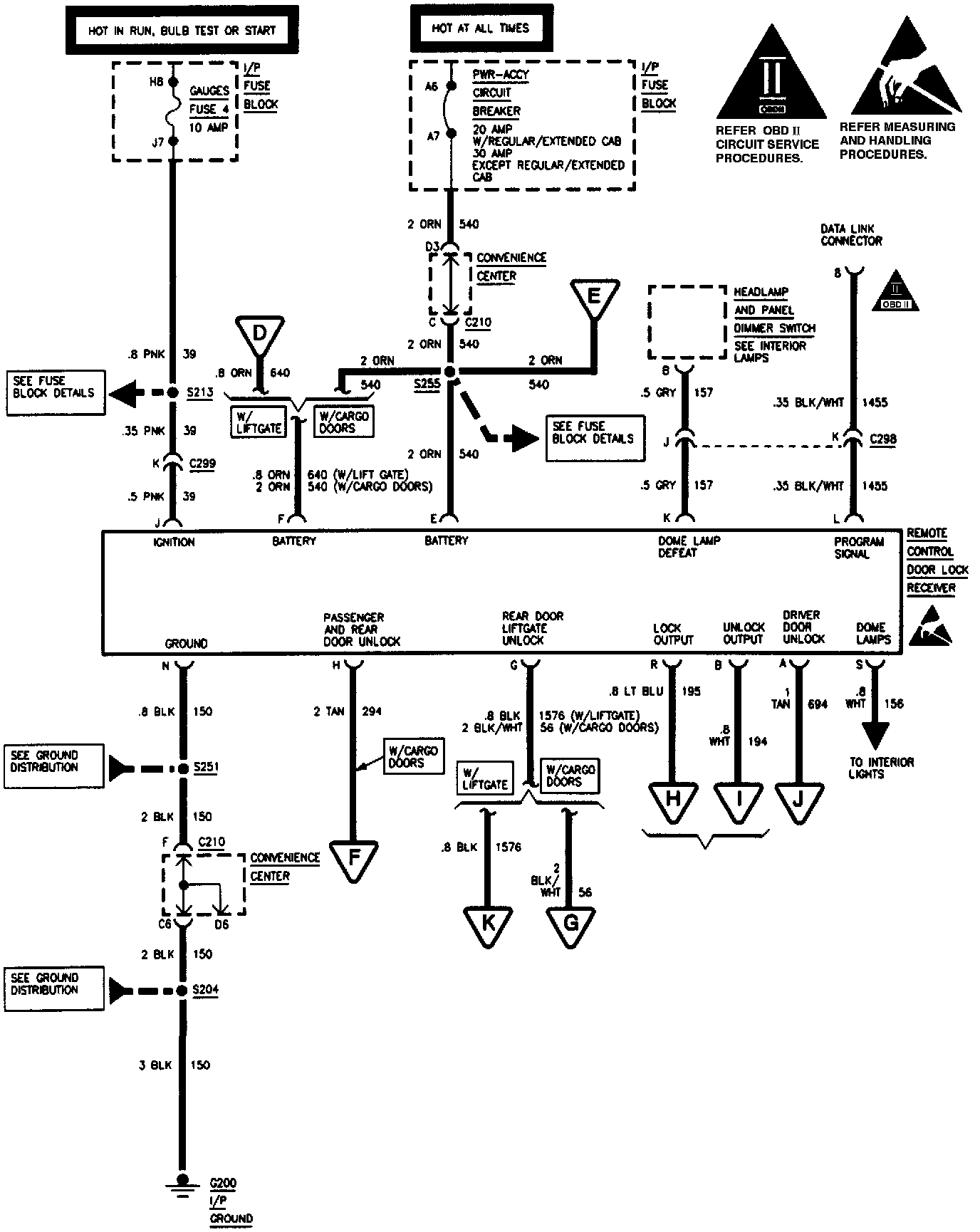

Remote Keyless Entry:
