Chevy Truck
>>
1997
>>
C 2500 Suburban 2WD V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
Amplifier, Sound System

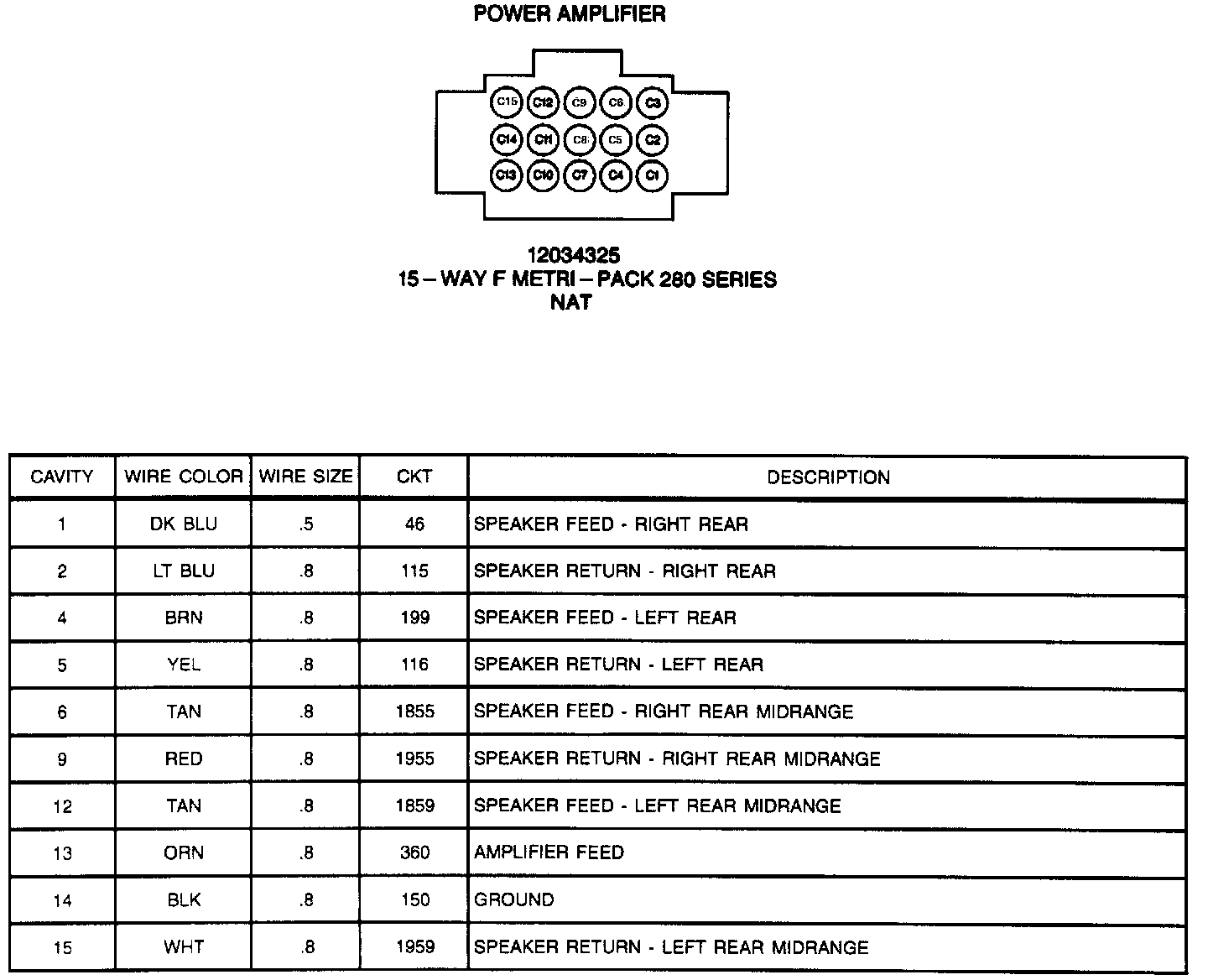

Power Amplifier:

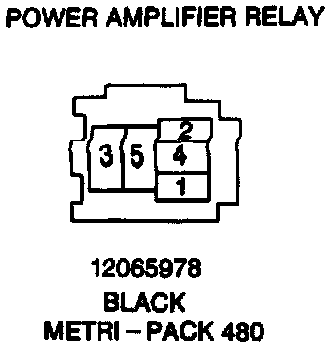

Power Amplifier Relay:
