With Eight Lug Bolts

REMOVE OR DISCONNECT

NOTE: Raise the vehicle and support it with suitable safety stands.

1. Tire and wheel assembly.
2. Brake caliper. Refer to Brakes and Traction Control.
3. Nut (120).

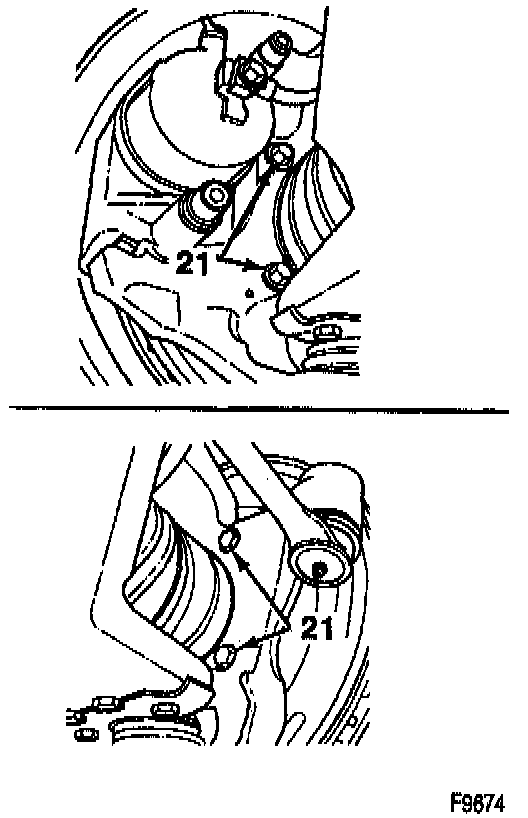

4. Hub/rotor retaining bolts (21).

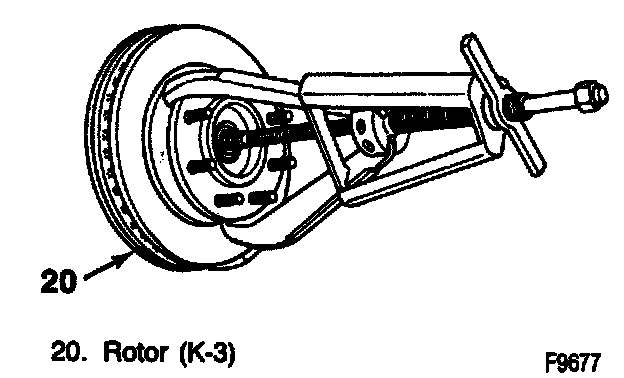

5. Using wheel puller, remove rotor assembly (20).

INSPECT
- All parts. Replace as necessary.

INSTALL OR CONNECT

CAUTION: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion Inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.





1. Hub/rotor (20) to the hub and bearing assembly.





2. Rotor and hub assembly to axle.
^ Tighten
- Bolts (21) 180 Nm (133 ft. lbs.).
- Nut (120) 225 Nm (165 ft. lbs.).
3. Brake caliper.
4. Tire and wheel assembly.
- Lower the vehicle.
- Depress the brake pedal.
