Intake Manifold Torque & Sequence

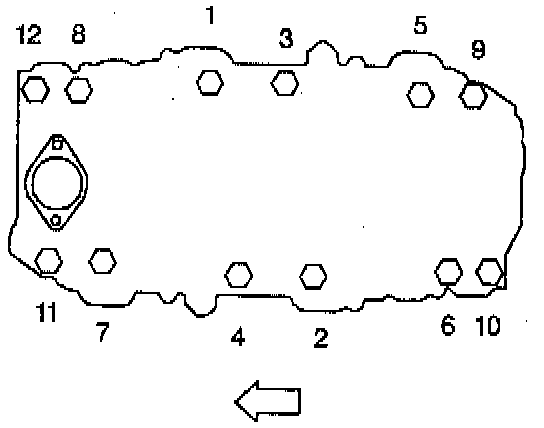

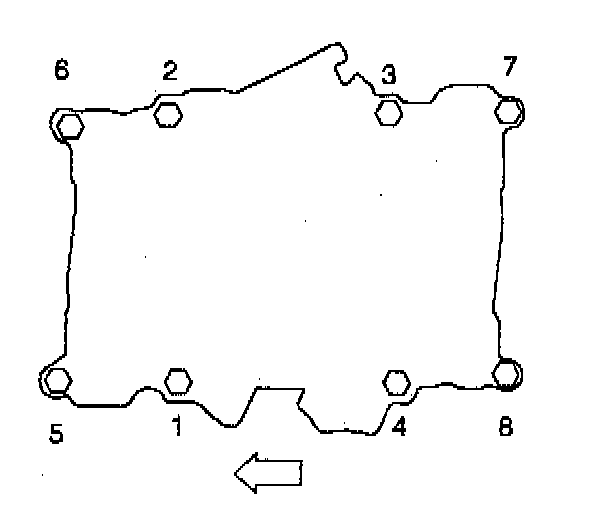

Intake Manifold Bolt Tightening Sequence:

Intake Manifold Lower Bolts (In Sequence) 40 Nm (30 ft. lbs.)







Intake Manifold Upper Bolts (In Sequence) 14 Nm (10 ft. lbs.)
