Bearings and Seals

- Tools Required:
- J 22912-01 Bearing Remover
- J 23907 Puller
- J 2619-01 Slide Hammer
- J 29369-1 Front Output Shaft Front Bearing Remover
- J 38427 Front Output Shaft Rear Bearing Remover





REMOVE OR DISCONNECT

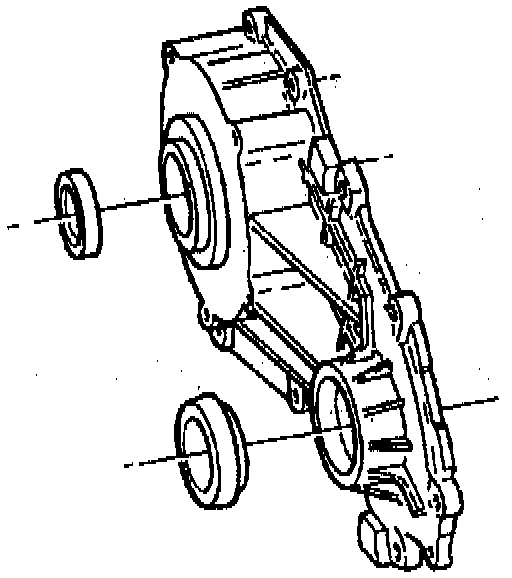

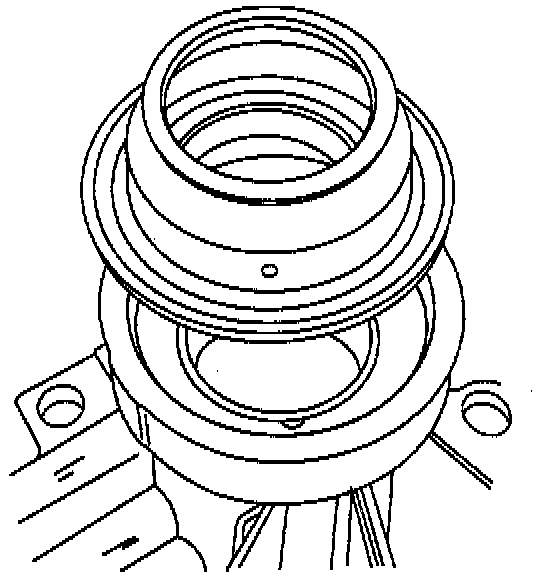

1. Front output shaft oil seal from the front cover.
2. Input shaft oil seal from the front cover.

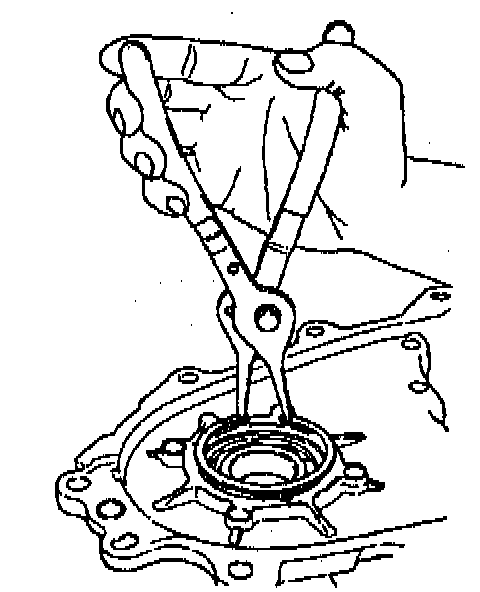

3. Output shaft bearing snap ring from the front cover.

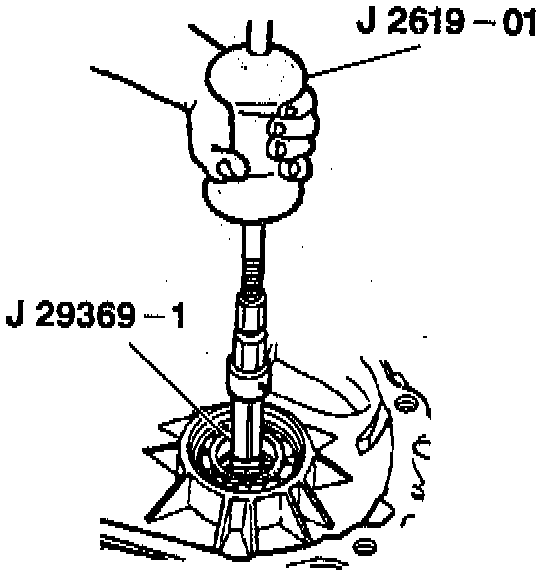

4. Output shaft bearing from the front cover using J 2619-01 and J 29369-1.





5. Output shaft oil seal from the extension housing.

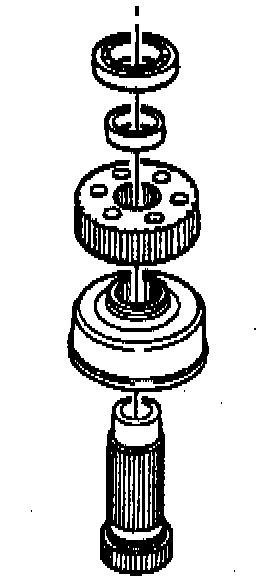

6. Using J 22912-01, press the sun gear shaft bearing from the sun gear shaft.
- Remove the drive sprocket spacer, drive sprocket, and the viscous clutch from the sun gear shaft.

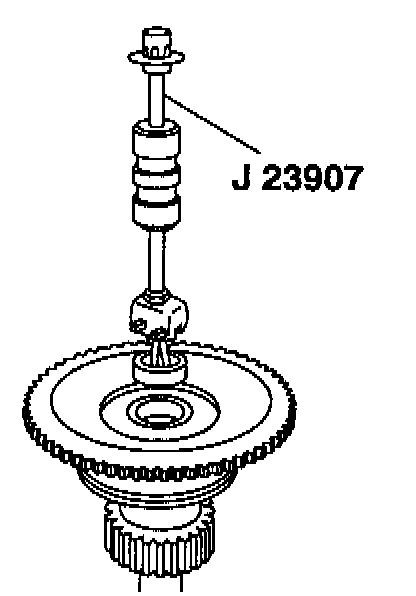

7. Input shaft pilot bearing from the output shaft assembly using J 23907.





8. Output shaft rear bearing from the rear case half using J 23907 and J 38427.
