Axle Bearing: Service and Repair

- Tools Required:
- J 2619 Slide Hammer
- J 2619-4 Adapter
- J 22813-01 Axle Bearing Puller
- J 23765 Axle Shaft Bearing Installer
- J 23771 Axle Shaft Seal Installer

REMOVE OR DISCONNECT









1. Brake drum and wheel.
2. Axle shaft.
3. Seal using a seal removal tool behind the steel case of the seal.
- Be careful not to damage the housing.

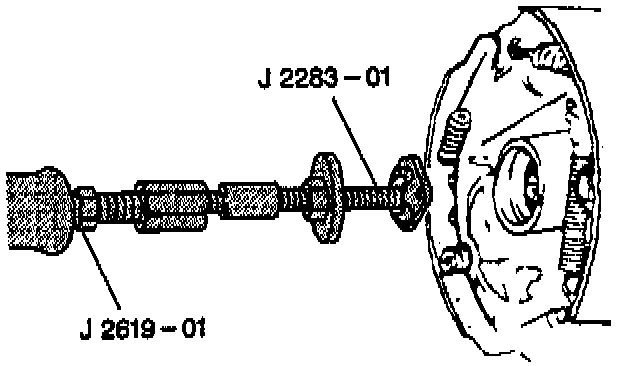

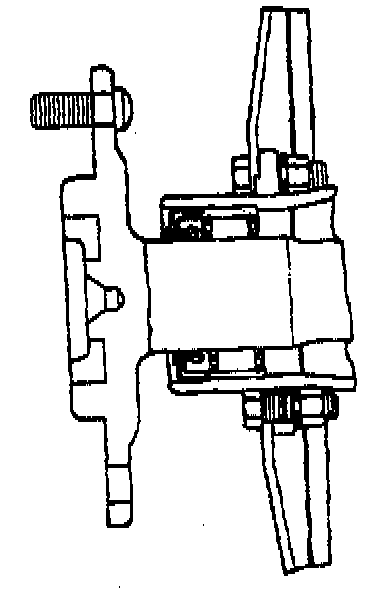

4. Bearing using J 2619, J 2619-4, and J 22813-01.
- The tangs of the tool should engage the bearing outer race.

INSTALL OR CONNECT









1. Brake drum and wheel.

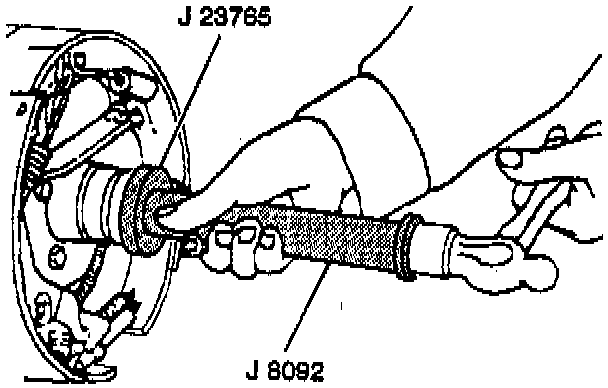

2. Bearing with J 23765 until the tool bottoms against the housing shoulder.
- Lubricate the bearing with gear lubricant.

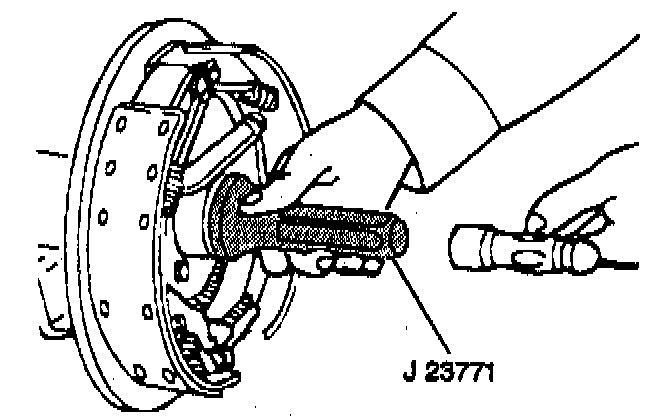

3. Seal using J 23771 until the seal is flush with the axle tube.
- Lubricate the seal lips with gear lubricant.
4. Axle shaft.
