Pinion Bearing Cup Installation

- Tool Required:
- J 33837 Pinion Bearing Cup Remover and Installer

INSTALL OR CONNECT

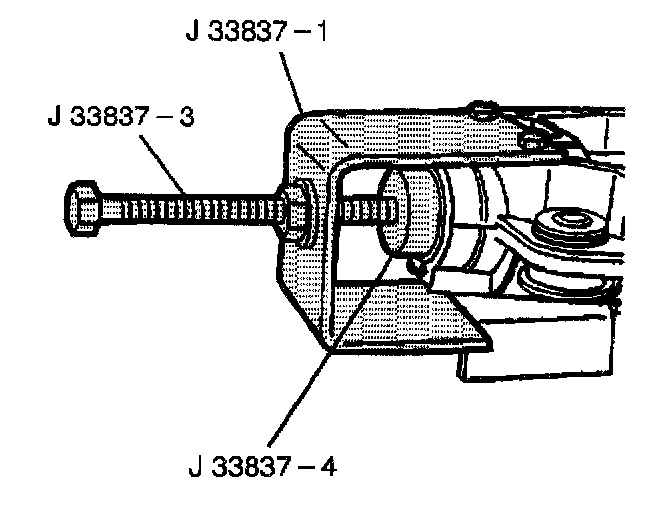

1. Outer Bearing into the case using J 33837-1, J 33837-3, and J 33837-4.





2. Inner Bearing into the case using J 33837-1, J 33837-3, and J 33837-4.
