Wipers - Revised Schematics, Diagnostics, and Locations
File In Section: 8 - Chassis/Body ElectricalBulletin No.: 86-81-15
Date: September, 1998
SERVICE MANUAL UPDATE
Subject:

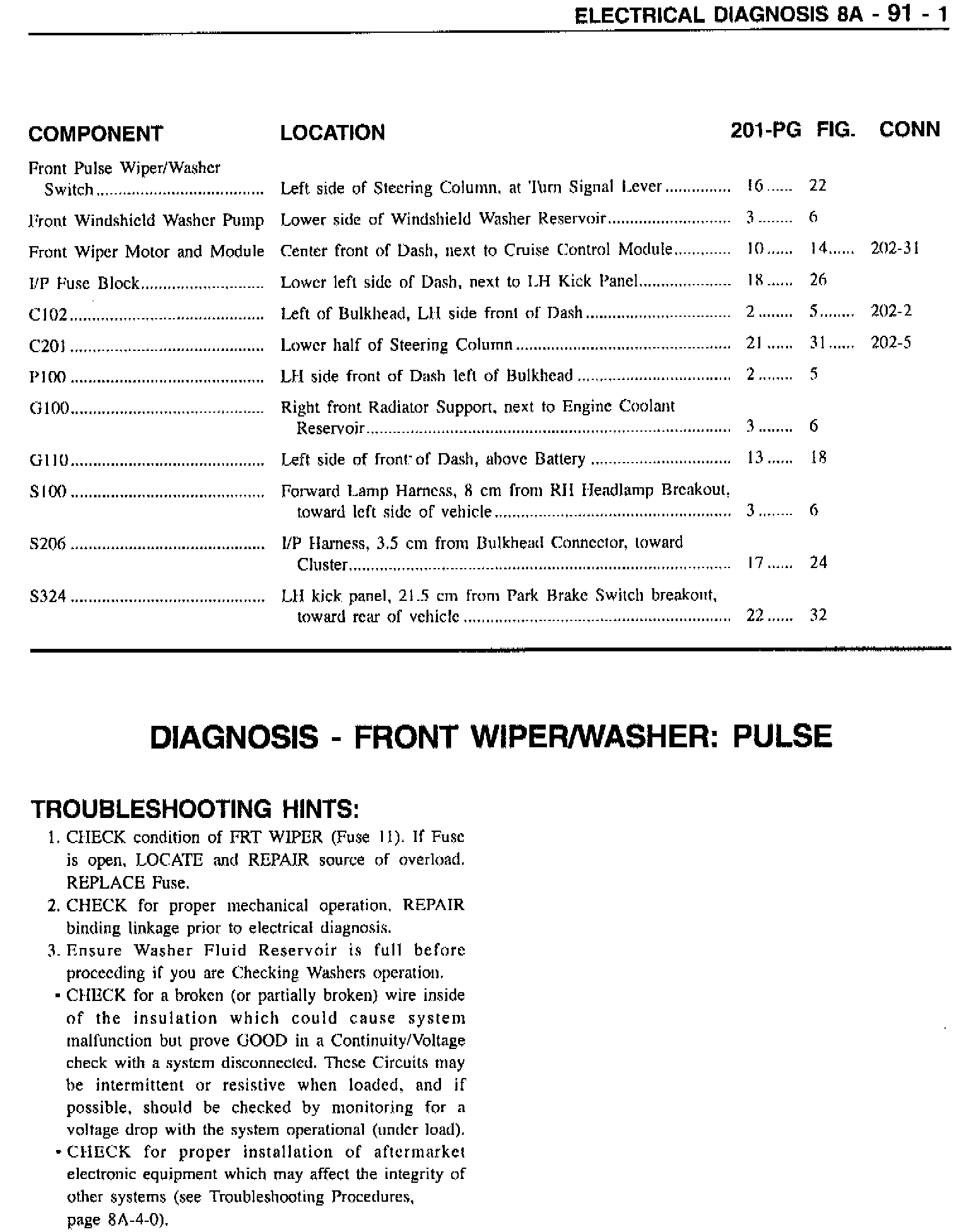

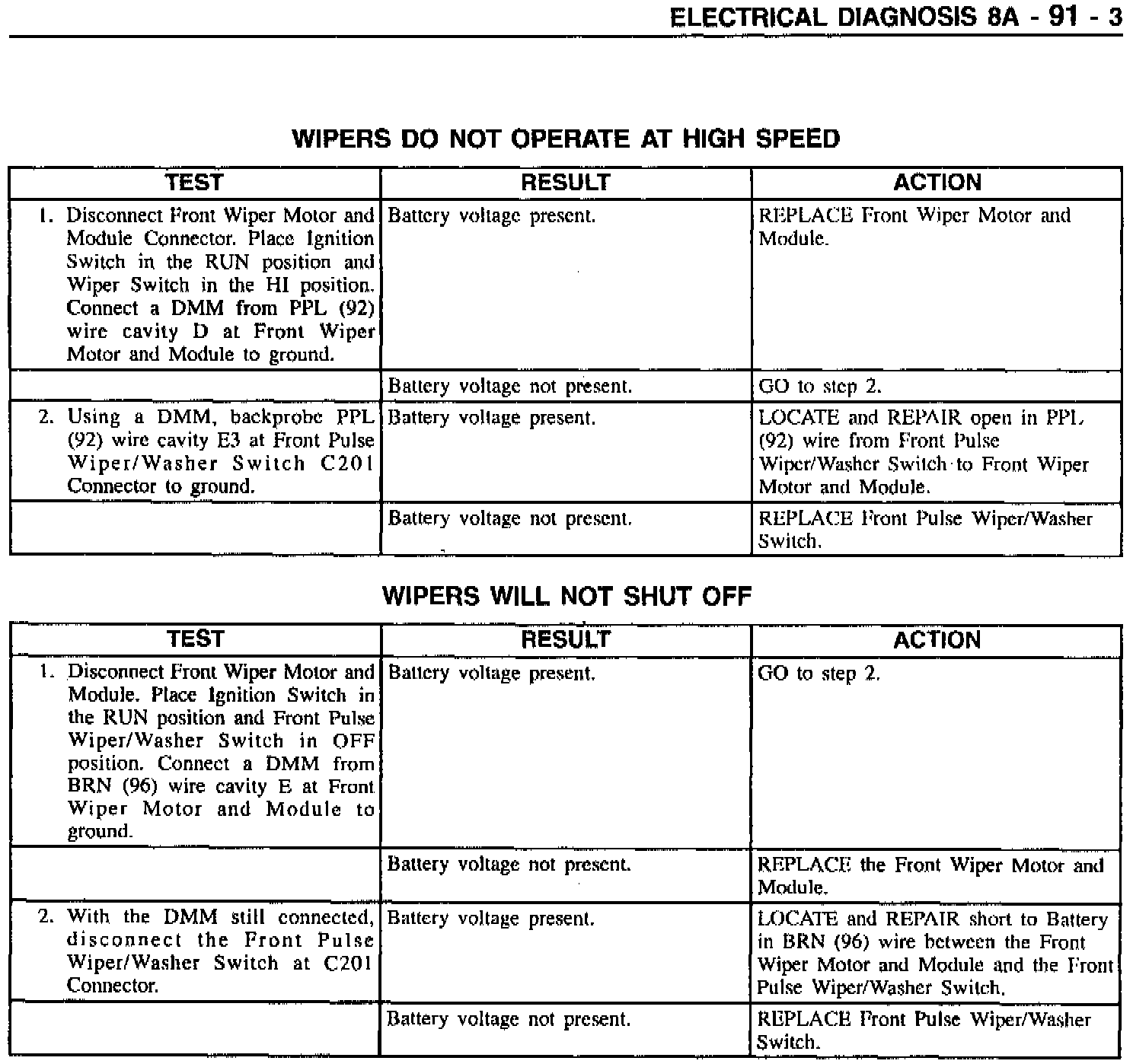

Sections 8A-91/8A-201 - Revised Schematic, Component Location Table/View and Diagnostic Tables
Models:
1997 Chevrolet and GMC M/L Models

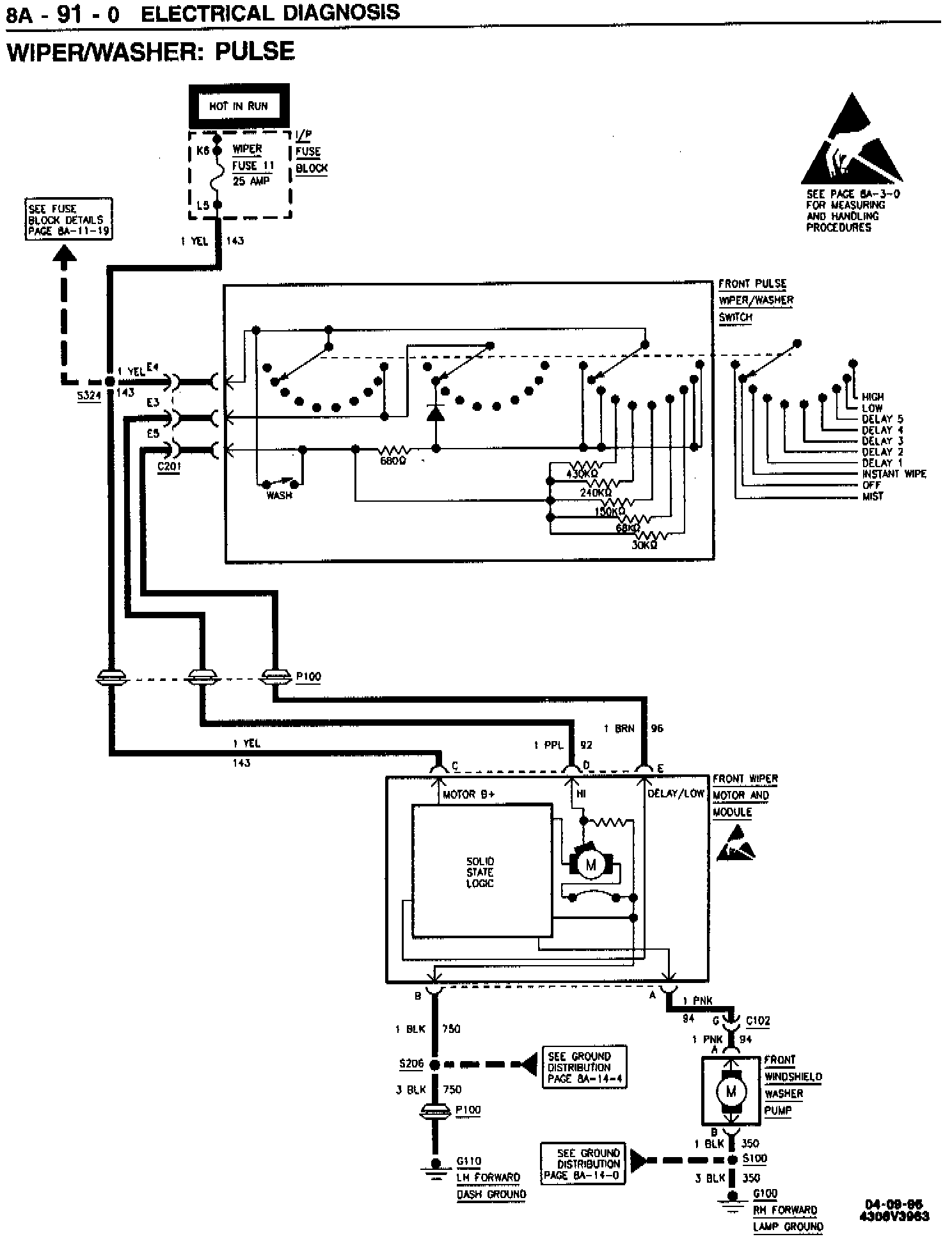

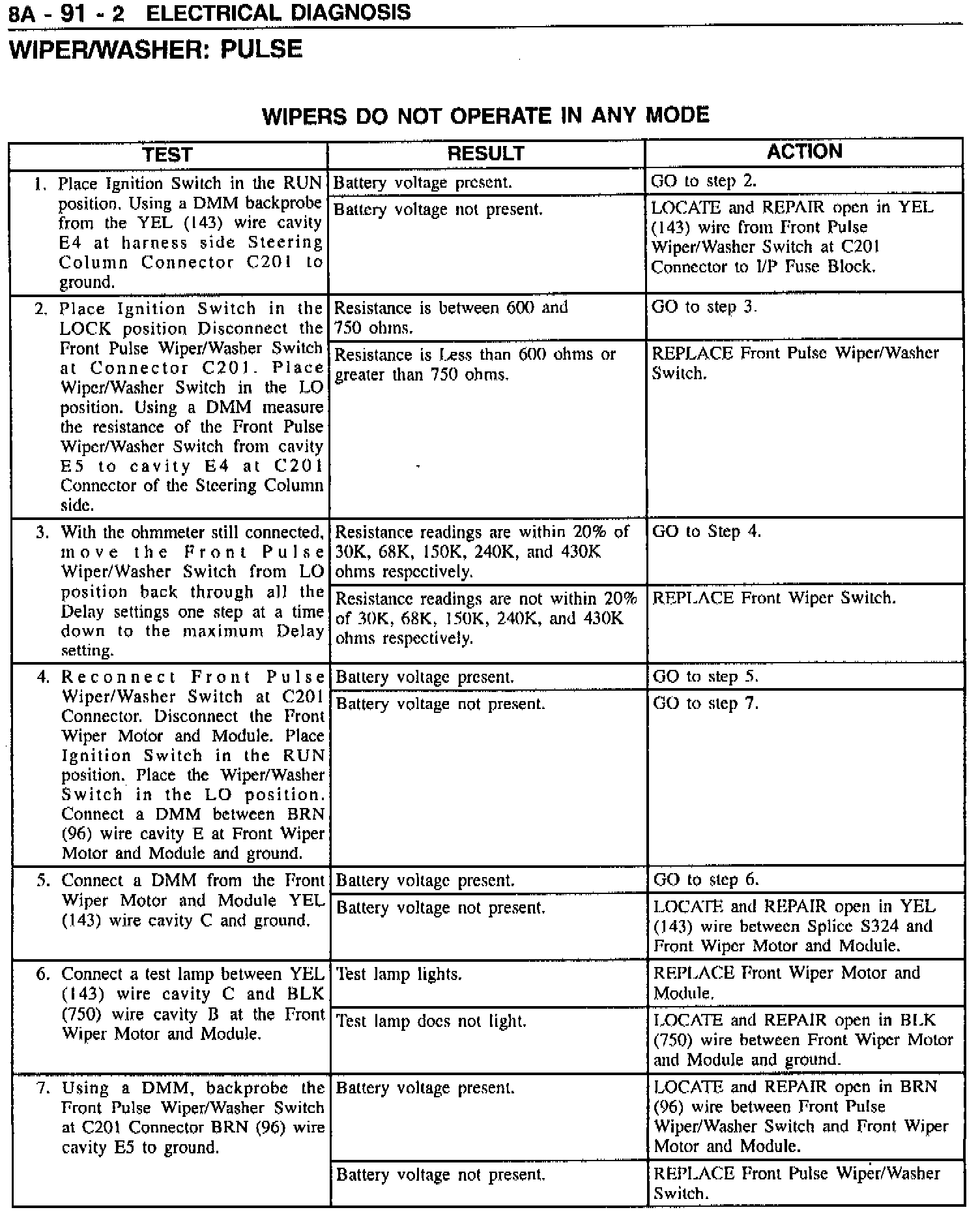

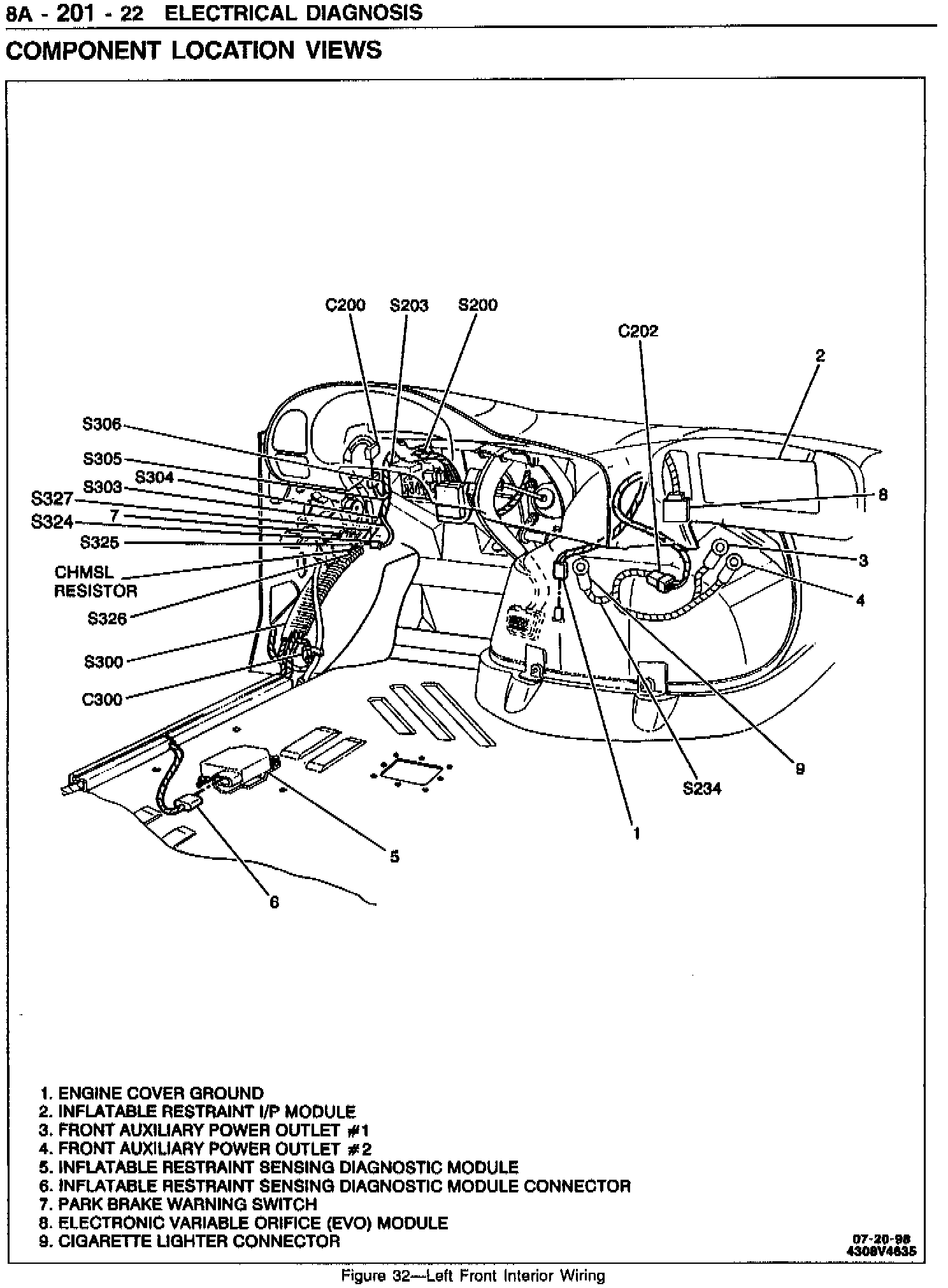

This bulletin revises the schematic on Page 8A-91-0, the Component Location Table on Page 8A-91-1, the diagnostic tables on Pages 8A-91-2 and 3, and the Component Location View on Page 8A-201-22 in the 1997 MIL Service Manual.
Please replace with the attached.
