Sliding Door - New Service Info, Mid-Year Design Change
File in Section: 10 - BodyBulletin No.: 76-16-13
Date: March, 1997
SERVICE MANUAL UPDATE
Subject:
Section 10A1 - Doors - New Sliding Door Service Information for Mid-Year
Design Changes
Models:
1997 Chevrolet and GMC M/L Models
This bulletin revises the 1997 Service Manual to include mid-year design changes made to the sliding door latch, roller mechanisms, and trim.

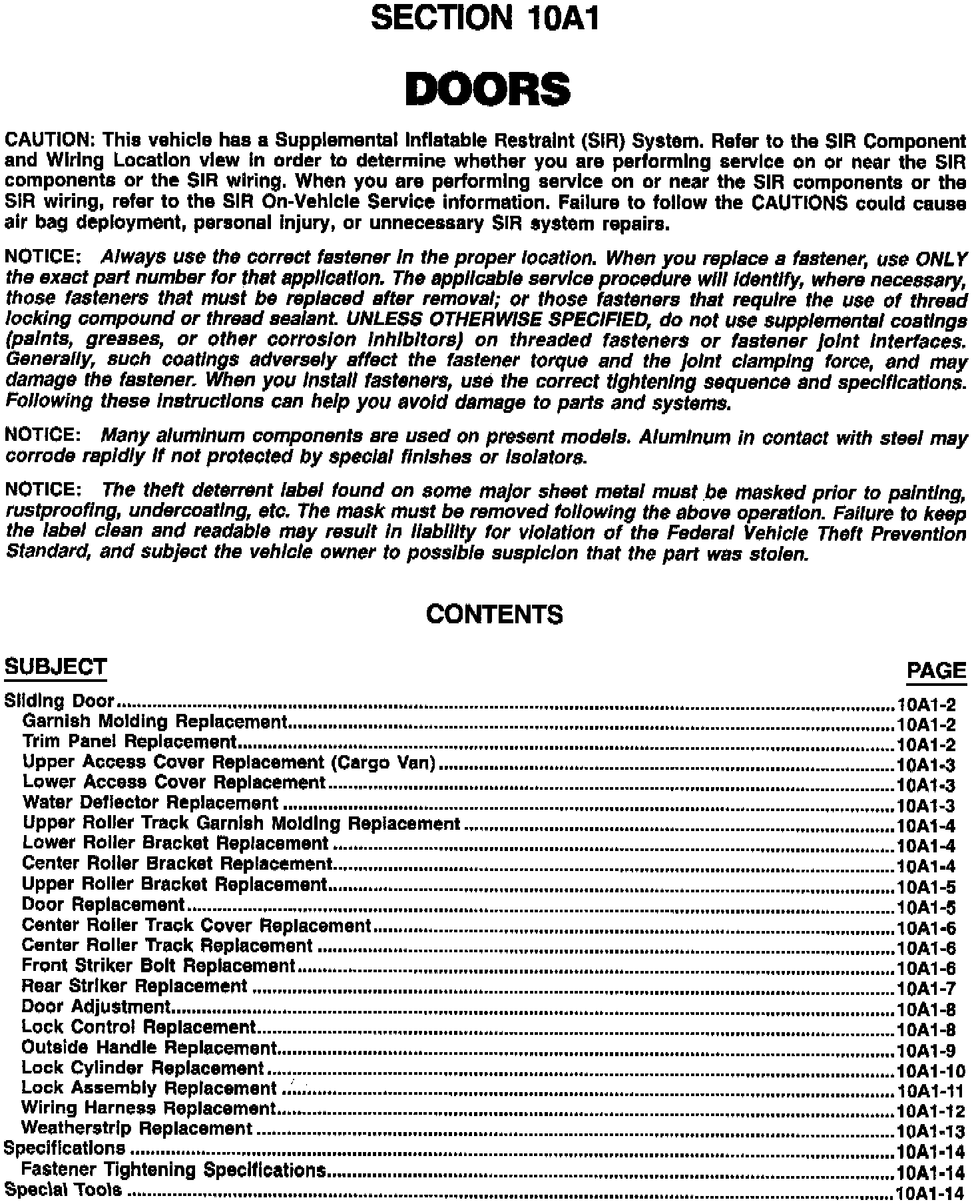

DOORS 10A1-1
DOORS 10A1-2
DOORS 10A1-3
DOORS 10A1-4
DOORS 10A1-5
DOORS 10A1-6
DOORS 10A1-7
DOORS 10A1-8
DOORS 10A1-9
DOORS 10A1-10
DOORS 10A1-11
DOORS 10A1-12
DOORS 10A1-13
DOORS 10A1-14
