Instrument Cluster, Gauges - Revised Schematic/Locations
File In Section: 8 - Chassis/Body ElectricalBulletin No.: 86-81-06
Date: July, 1998
SERVICE MANUAL UPDATE
Subject:
Section 8A-81 - Instrument Cluster: With Gauges - Revised Schematic, Component Location Table, and Diagnostic Tables
Models:
1997 Chevrolet and GMC M/L Models

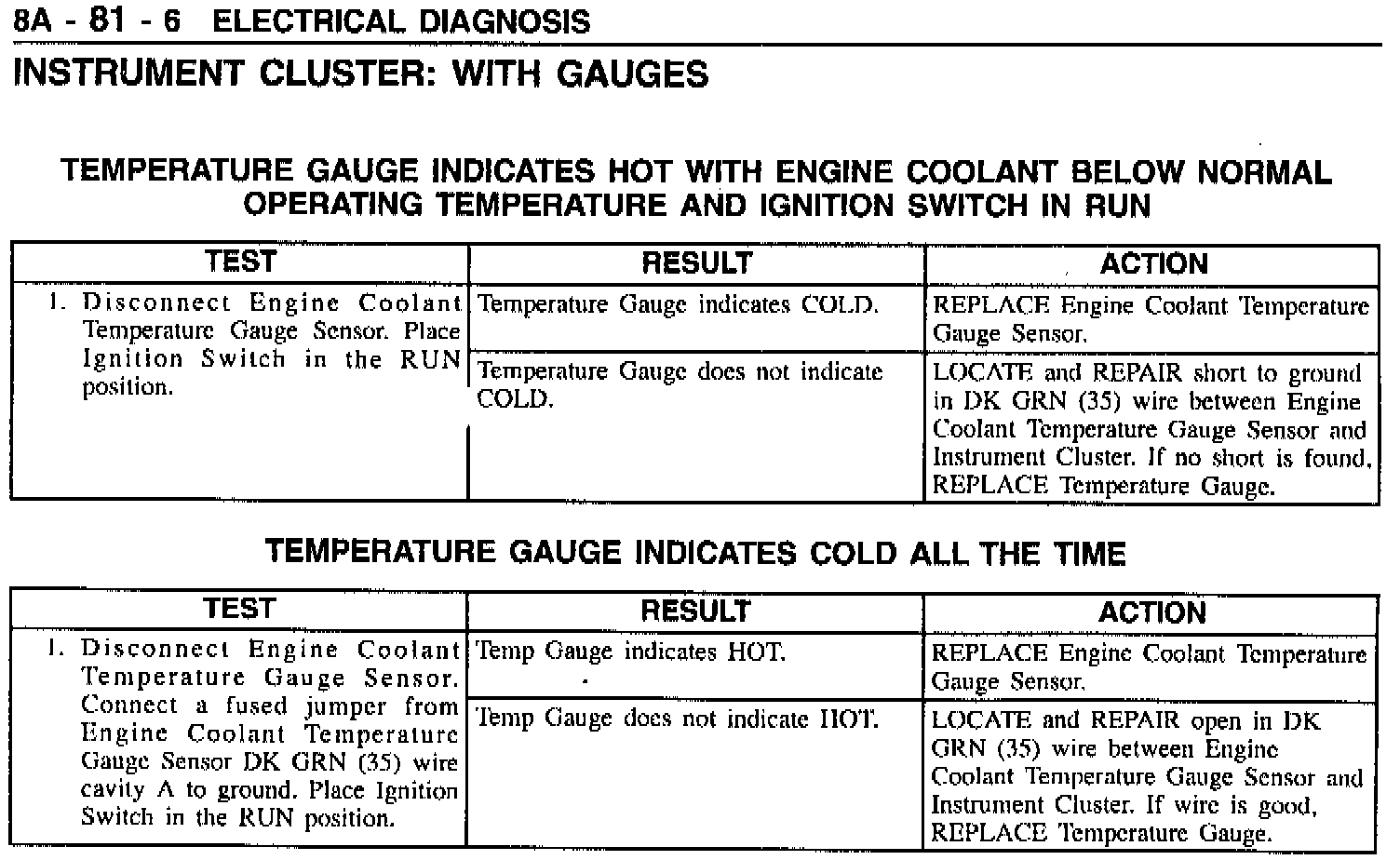

This bulletin revises the schematic on Page 8A-81-1, the Component Location table on pages 8A-81-2 and 8A-81-3, and the Diagnostic tables on pages 8A-81-5, 6, and 8 in the 1997 M/L Service Manual.
