Drive Shaft Seal Replacement

^ Tool Required:
- J 7728 Shaft Oil Seal Installer
- Or Equivalent

REMOVE OR DISCONNECT
- Power steering pump from vehicle.





DISASSEMBLE

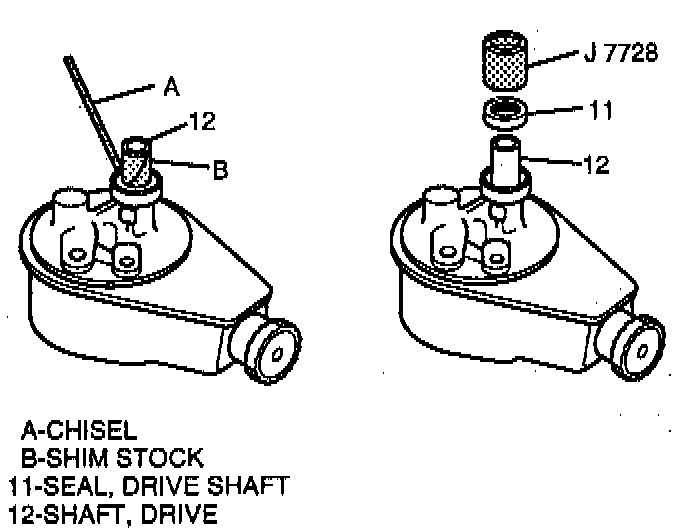

- Protect drive shaft (12) with shim stock.
- Seal (ll) by cutting with a chisel.

ASSEMBLE
- Lubricate seal (11) with power steering fluid.
- Seal (11) using J 7728.

INSTALL OR CONNECT
- Power steering pump.
