Electrical - Revised Power Distribution Schematics
File In Section: 8 - Chassis/Body ElectricalBulletin No.: 86-81-12
Date: September, 1998
SERVICE MANUAL UPDATE
Subject:

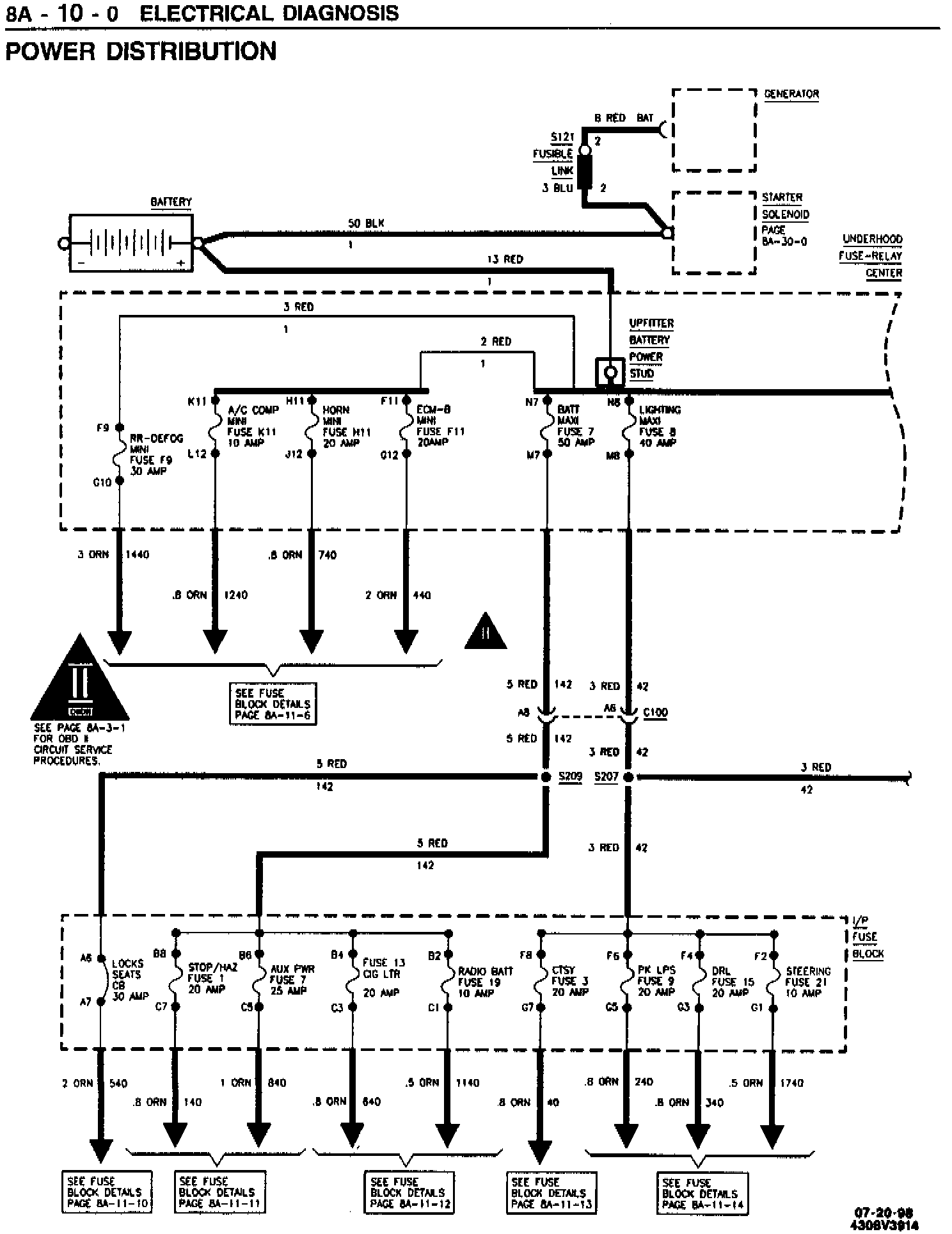

Section 8A-10 - Power Distribution - Revised Schematics
Models:
1997 Chevrolet and GMC M/L Models
This bulletin revises the schematics on Page 8A-10-0 in the 1997 M/L Service Manual.
Please replace with the attached.
