Remove or Disconnect

Remove or Disconnect
Disable the SIR system, refer to Air Bag(s) Arming and Disarming.
1. The passenger knee bolster.
2. The I/P extension.
3. The Connector Position Assurance (CPA) and electrical connector
4. Passenger inflator module pigtail electrical connector from mounting hole in I/P

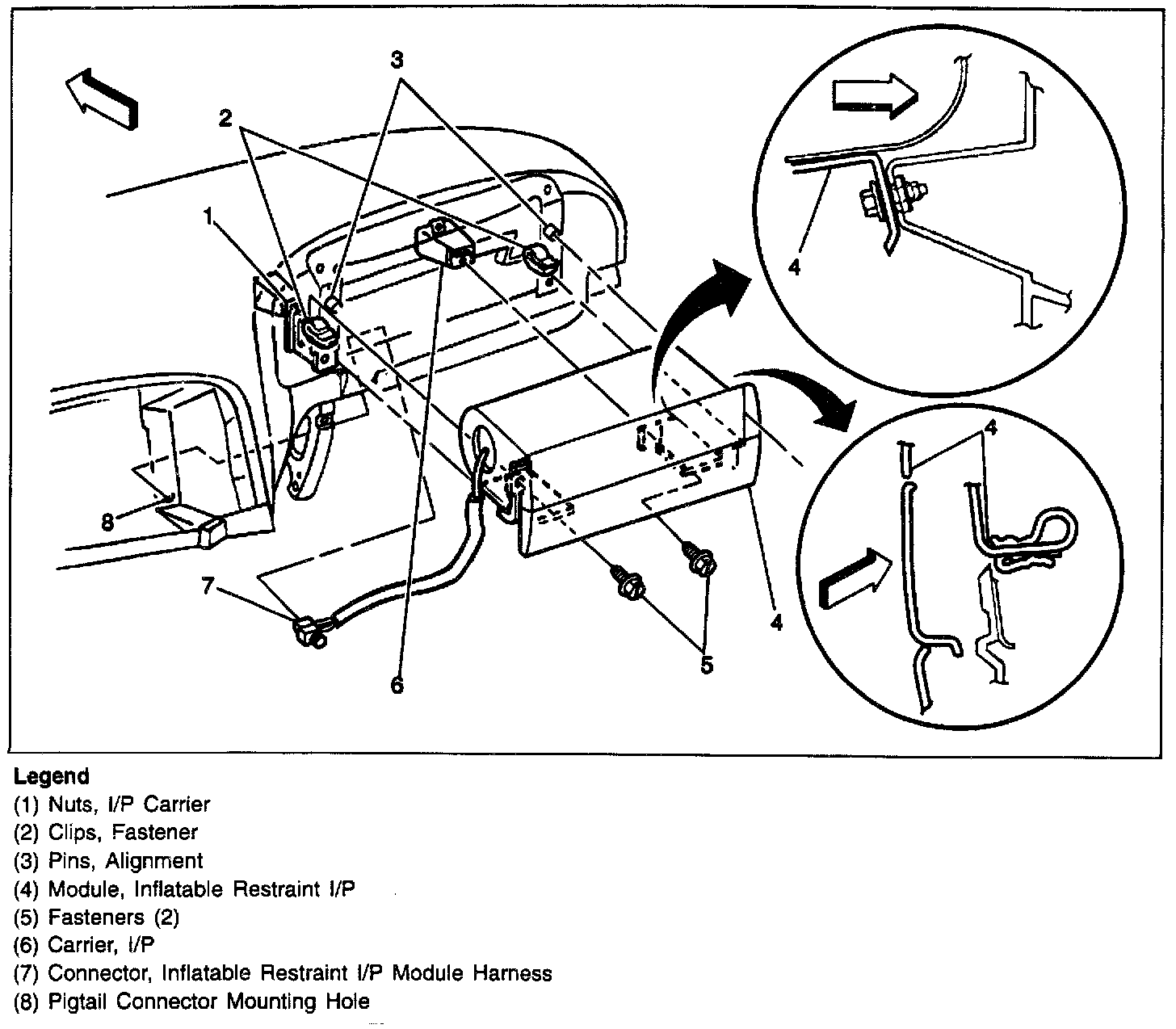

5. Two bolts retaining passenger inflator module to the I/P carrier, refer to (Figure 15).
6. Slide passenger inflator module rearward out from clips in I/P carrier, tip module down and remove from vehicle. Note the pigtail routing for reassembly.

CAUTION: When you are carrying an undeployed inflator module:
^ Do not carry the inflator module by the wires or connector on the inflator module.
^ Make sure the bag opening points away from you.
When you are storing an undeployed Inflator module, make sure the bag opening points away from the surface on which the inflator module rests. When you are storing a steering column, do not rest the column with the bag opening facing down and the column vertical. Provide free space for the air bag to expand in case of an accidental deployment. Otherwise, personal injury may result.
