Fuel Level Sensor/Gauge Module Replacement

Description:

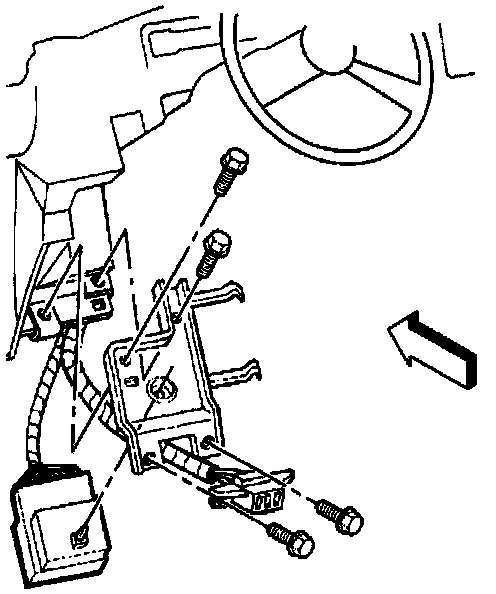

Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the module end cover.
3. Remove the circuit board inside the module housing being careful not to bend or twist the circuit board.

Installation Procedure
1. Install the circuit board inside the module housing being careful not to bend or twist the circuit board.
2. Install the module end cover.
3. Connect the negative battery cable.
