Evaporative Emission Control Canister: Service and Repair

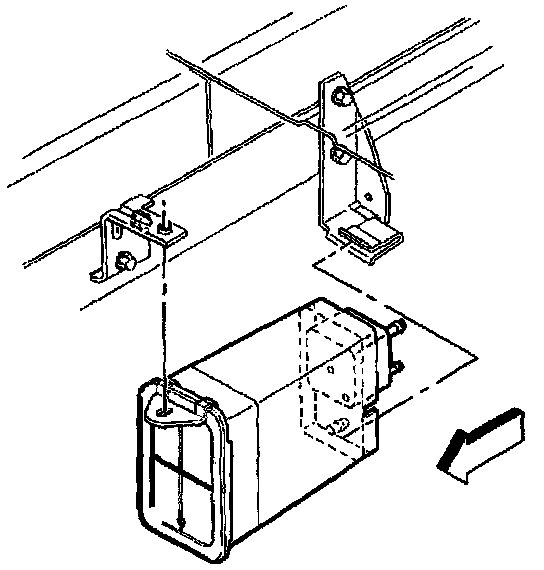

REMOVAL PROCEDURE
1. Remove the EVAP hoses from the canister.
2. Mark the hose for installation on the new canister.
3. Remove the screw from the mounting bracket.
4. Remove the canister.

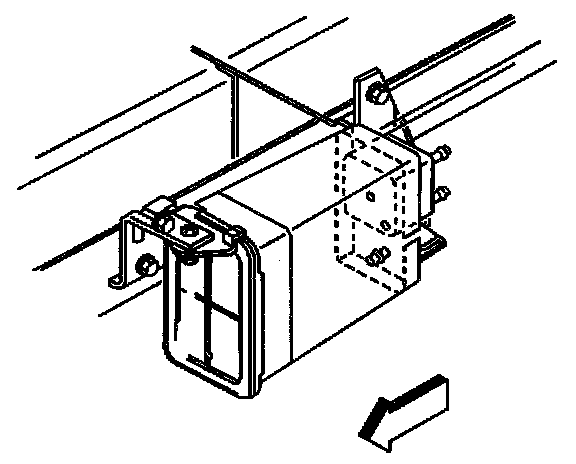

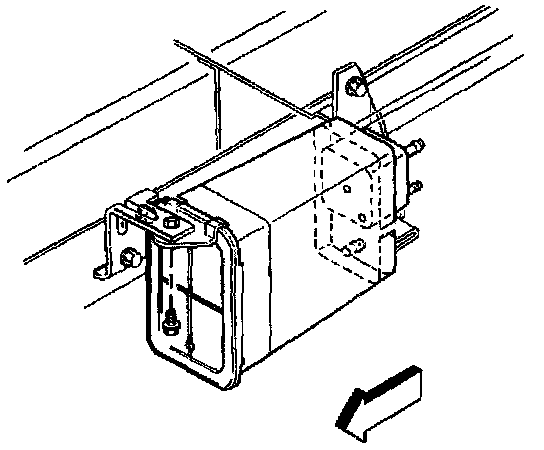

INSTALLATION PROCEDURE
1. Install the EVAP canister.
2. Install the bracket screw.
3. Install the EVAP hoses to the canister.
