Canister Purge Control Valve: Service and Repair

Diagram:

REMOVAL PROCEDURE
1. Remove the purge solenoid electrical connector.

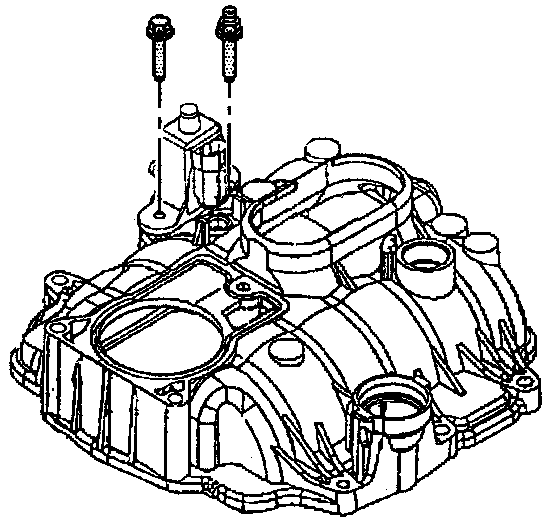

2. Remove the purge solenoid retaining bolts.

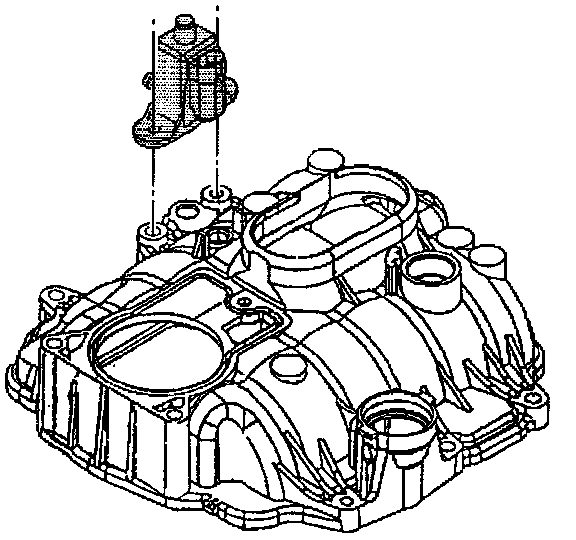

3. Remove the purge solenoid from the intake manifold.

INSTALLATION PROCEDURE
1. Install the purge solenoid to the intake manifold.
2. Install the purge solenoid retaining bolts.
3. Install the purge solenoid electrical connector.
