Chevy Truck
>>
1997
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>

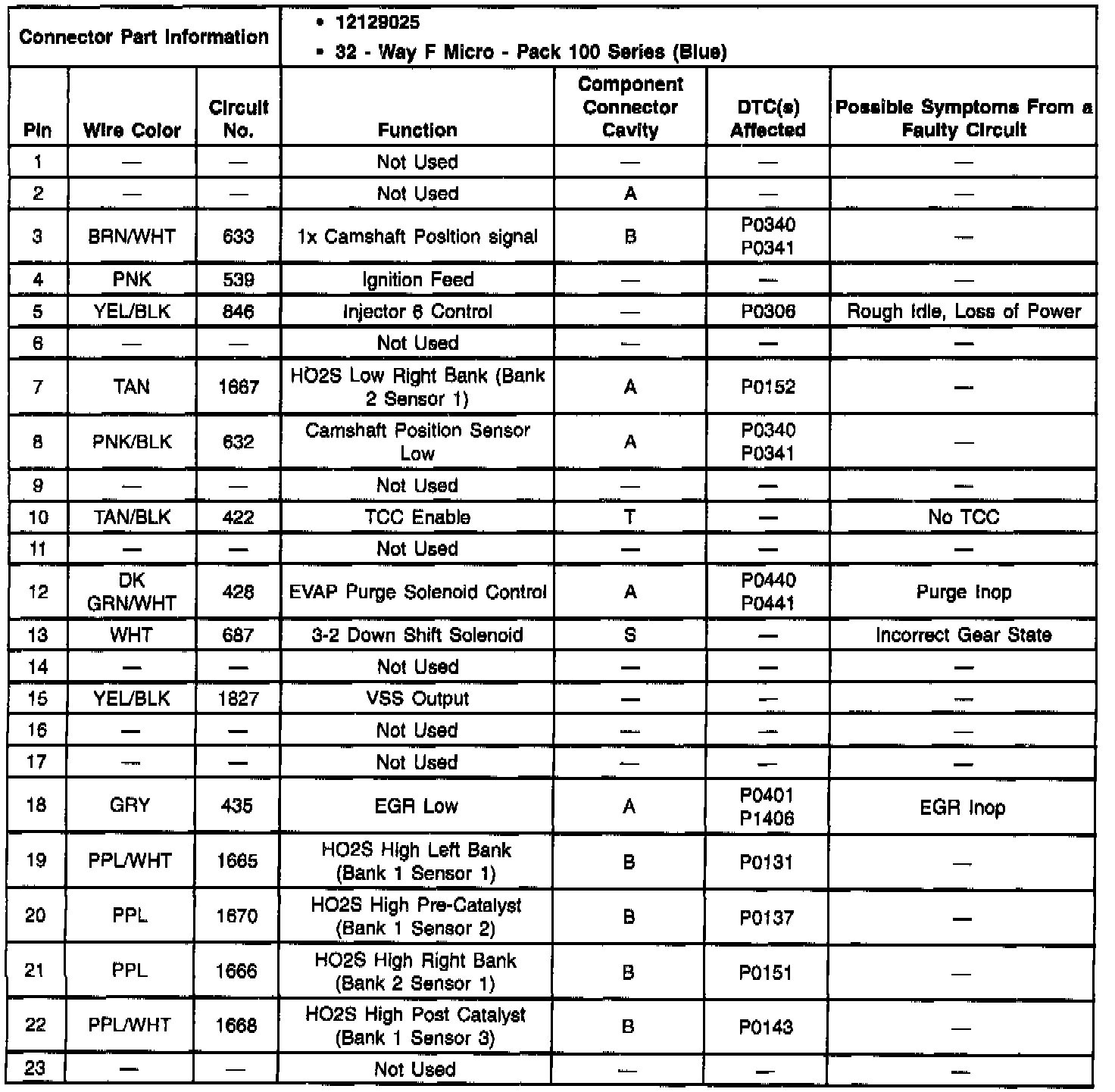

Blue (C1)
>>
Pin 1-23
Pin 1-23
Diagnostic Chart:
