Engine Controls - Revised Diagrams & Component Locations

File In Section: 6E - Engine Fuel & Emission

Bulletin No.: 76-65-06

Date: June, 1998

SERVICE MANUAL UPDATE

Subject:
Section 6E - Engine Controls Revised Schematics and Component Location Table

Models:
1997 Chevrolet and GMC M/L Models

�8 :

��8 :

�-9 :

�i9 :

��9 :

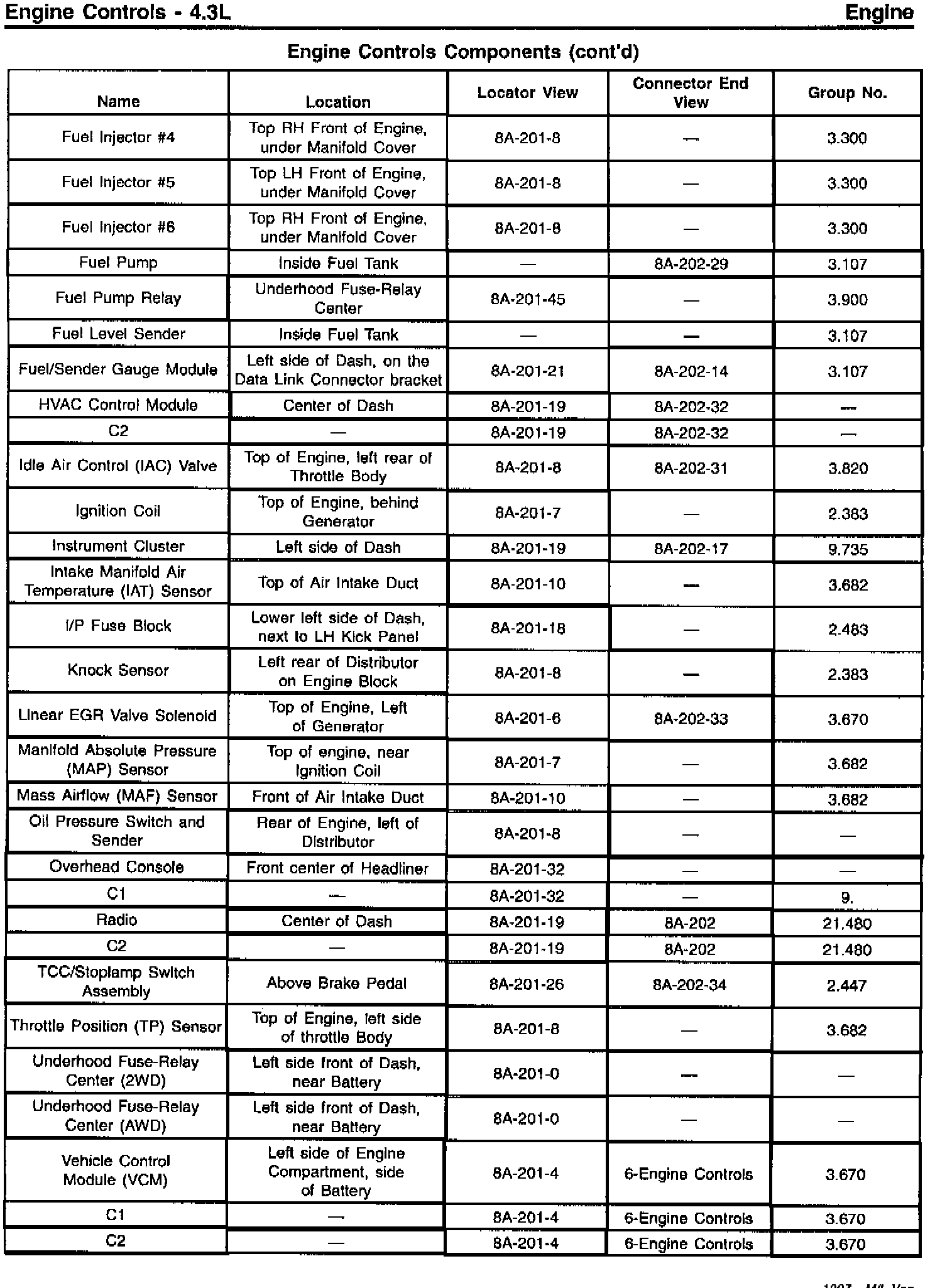

This bulletin revises the fuel controls schematics, on page 6E-31 in the Service Manual. The revision also includes the engine controls component location table, on page 6E-34 in the same Service Manual.
