Chevy Truck
>>
1997
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G101
G101

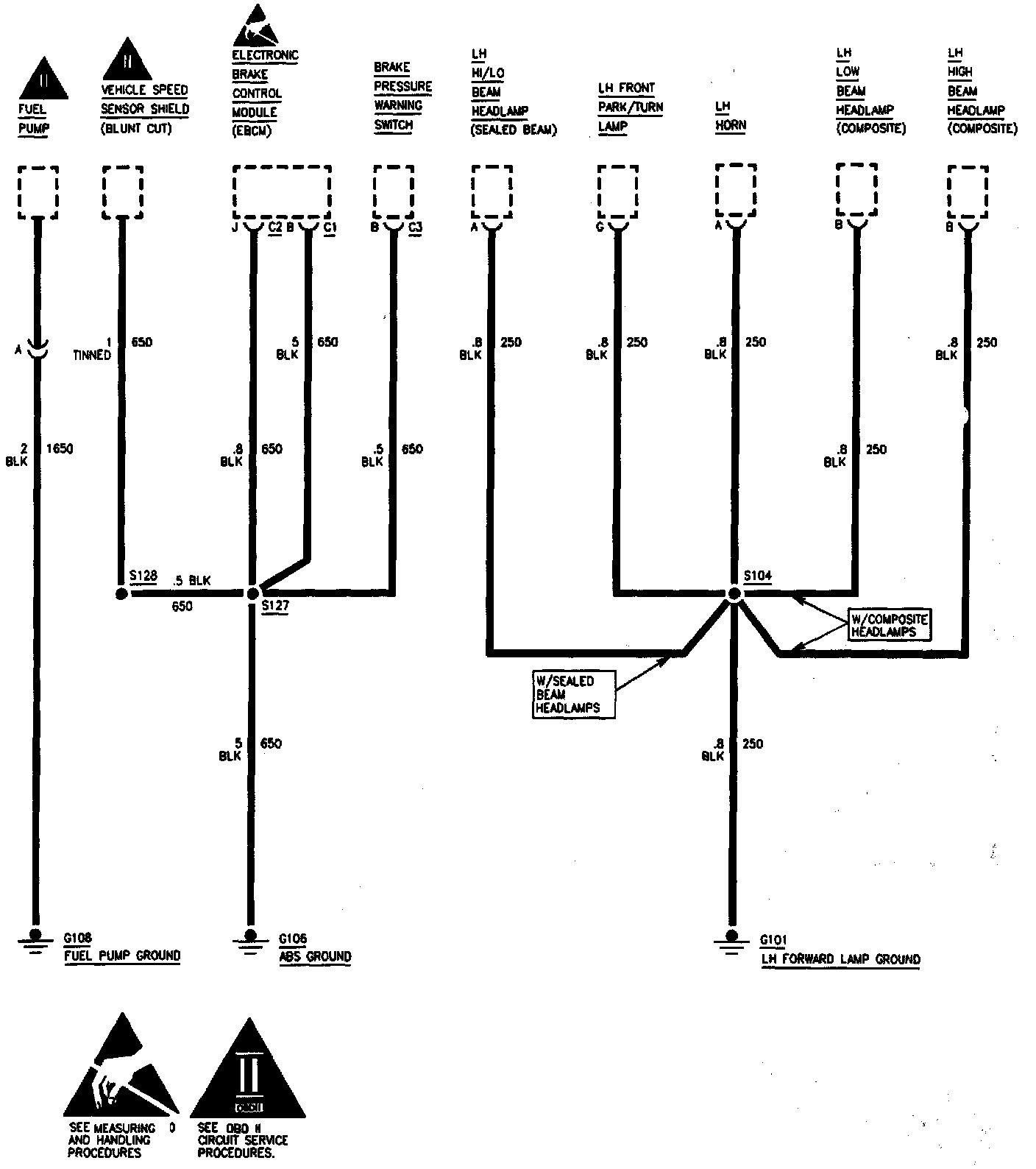

G108, G106, G101:
