License Plate Lamp: Service and Repair

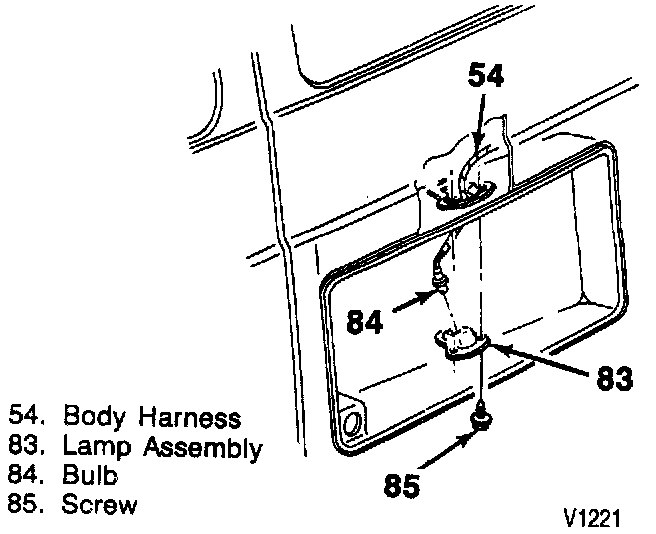

License Plate Lamp:





Remove or Disconnect
^ Make sure the headlamp switch is off. Refer to Service Precautions.
1. Two screws.
2. Bulb.

Install or Connet
1. Bulb.
2. Lamp assembly and mounting screws.

Tighten
^ License lamp screws to 1.4 N.m (12 Lb. in).
