Dome Lamp Replacement

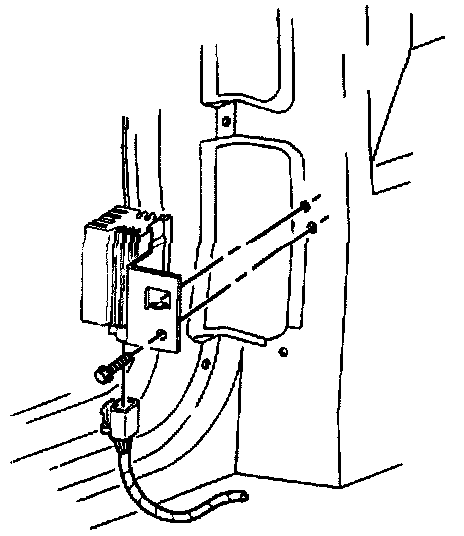

DRL Diode:

Remove or Disconnect
1. Negative battery cable. Refer to Service Precautions.
2. Lens by pressing in on the sides.
3. Bulb.
4. Two screws.
5. Housing.
6. Electrical connectors.
^ Squeeze the clip tangs together at each clip and push the clip connector up through the housing

Install or Connect
1. Electrical connectors to the housing.
2. Housing to the roof inner trim panel with two screws.

Tighten
^ Dome lamp housing screws to 2 N.m (18 Lb. in).
3. Bulb.
4. Lens.
5. Negative battery cable.
