Component Tests and General Diagnostics

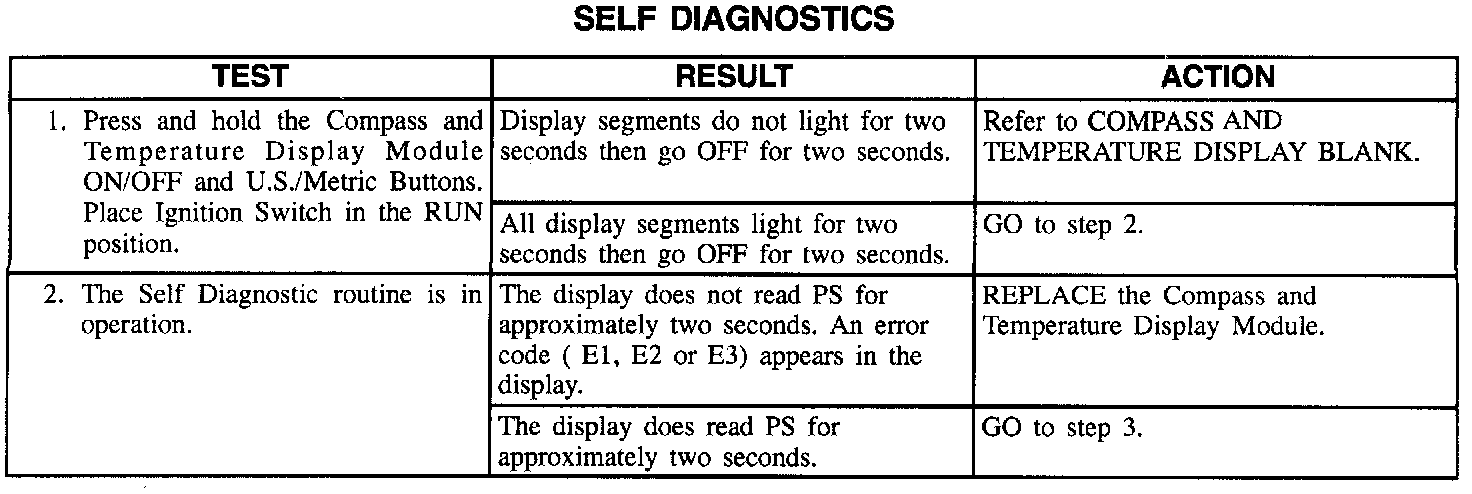

Self Diagnostics (Part 1 Of 2):

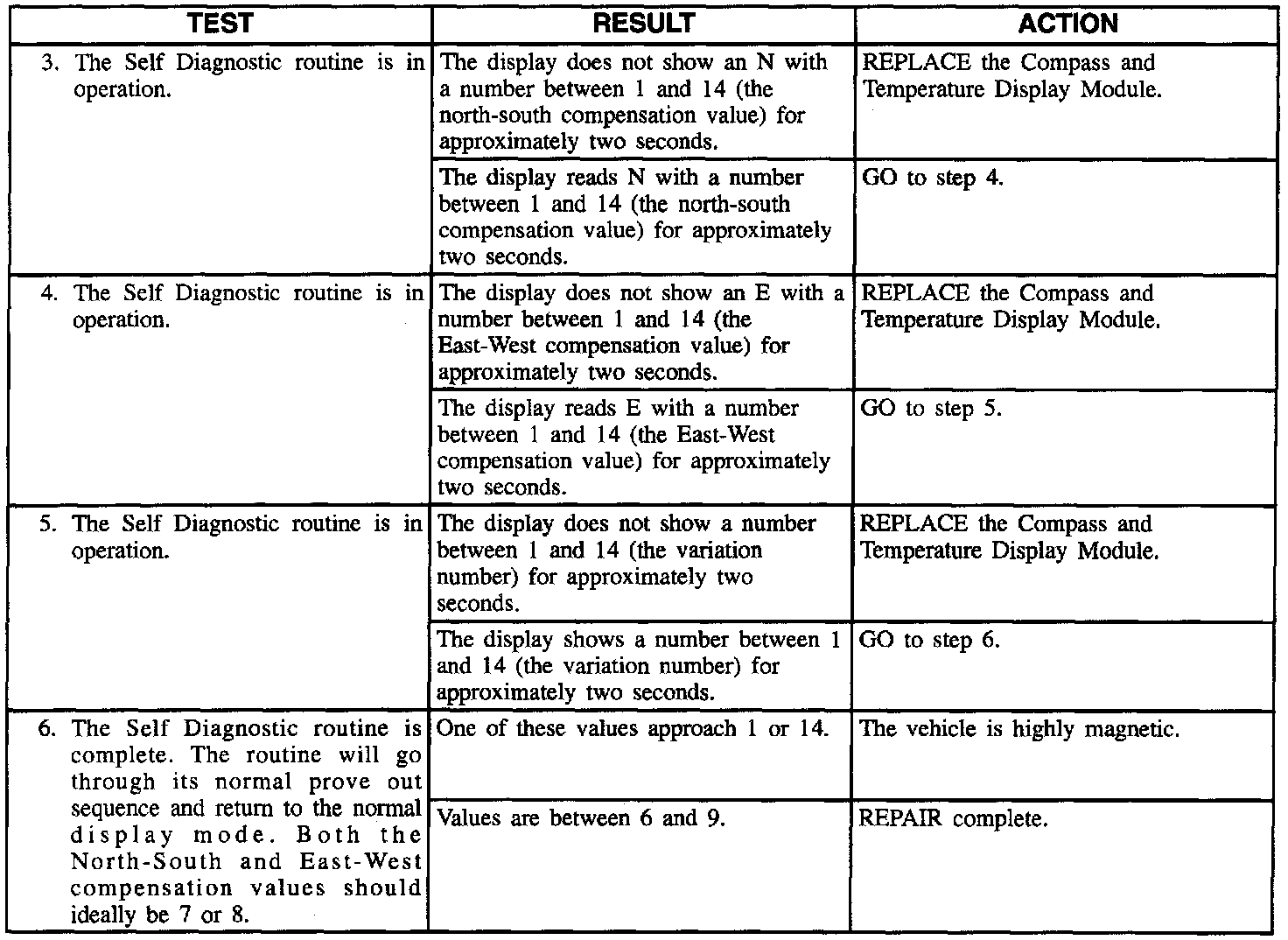

Self Diagnostics (Part 2 Of 2):

SELF DIAGNOSTICS
The Temperature/Compass Display Module can perform Self Diagnostic Test to the display segments and internal Circuitry. Refer to Self Diagnostics Chart to initiate and interpret the Self Diagnostic Capabilities.
