Compass / Electronic Display Module

Digital Display Module Removal:

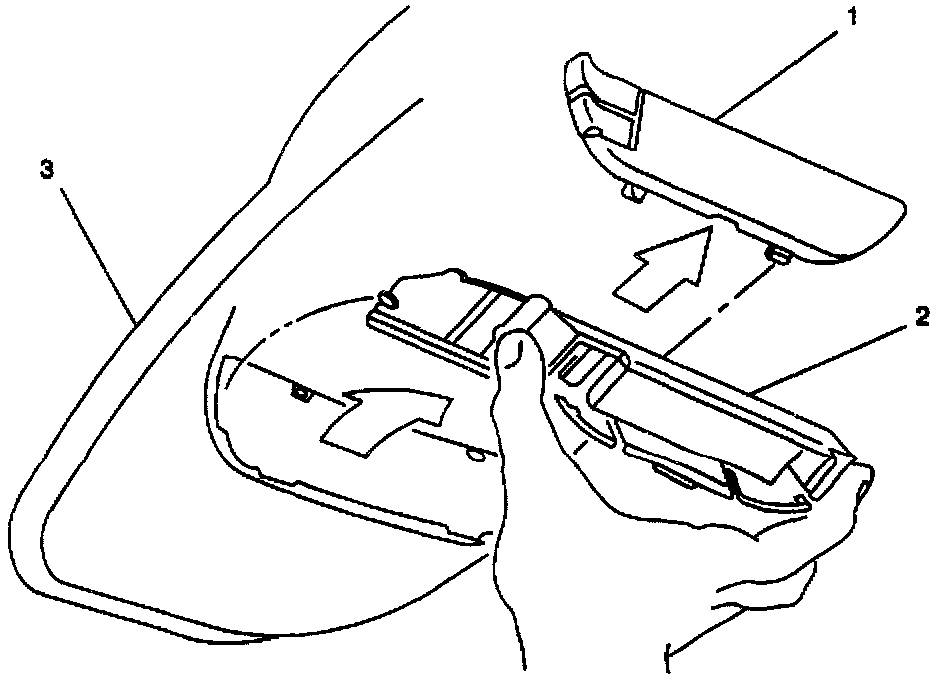

REMOVE OR DISCONNECT
1. Overhead console (3).
2. Display lens (1) and switch tape.
3. Temperature/compass electronic module (2).

Digital Display Module Removal:

INSTALL OR CONNECT
1. Electronic module(2).
2. Display lens (1).
3. Overhead console (3).
4. Recalibrate compass.
