Heater System

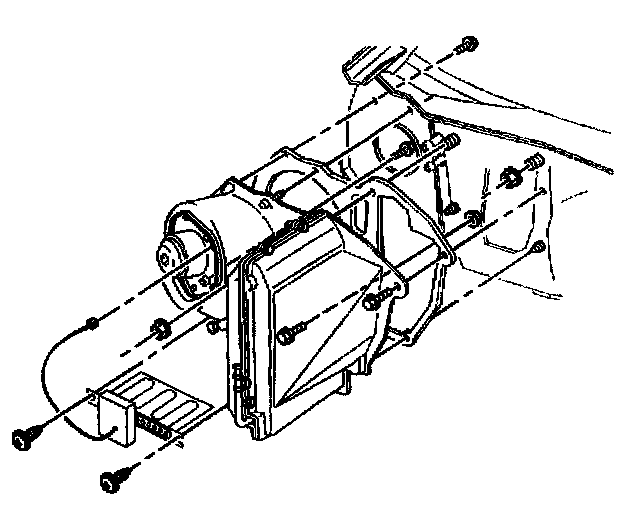

Remove or Disconnect

1. Negative battery cable.
2. Electrical connector.
3. Screws.
4. Resistor from blower case.

Install or Connect

1. Resistor to blower case.
2. Screws.
3. Electrical connector.
4. Negative battery cable.
^ Check circuit operation.
