Rear A/C Unit

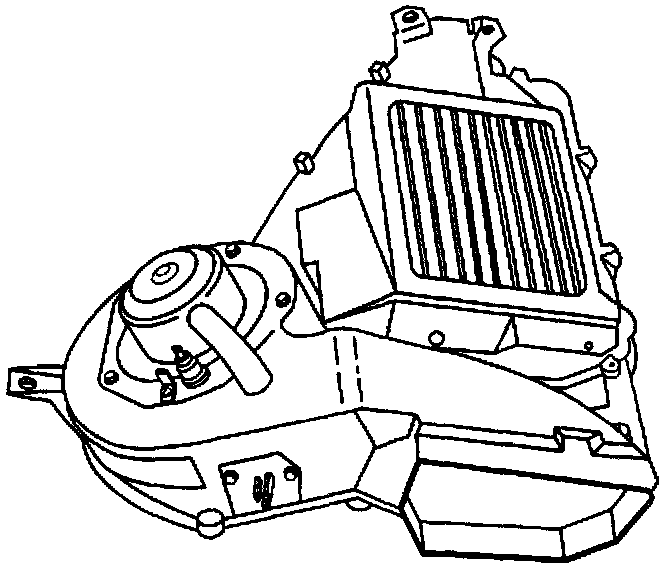

Rear A/C, External View:

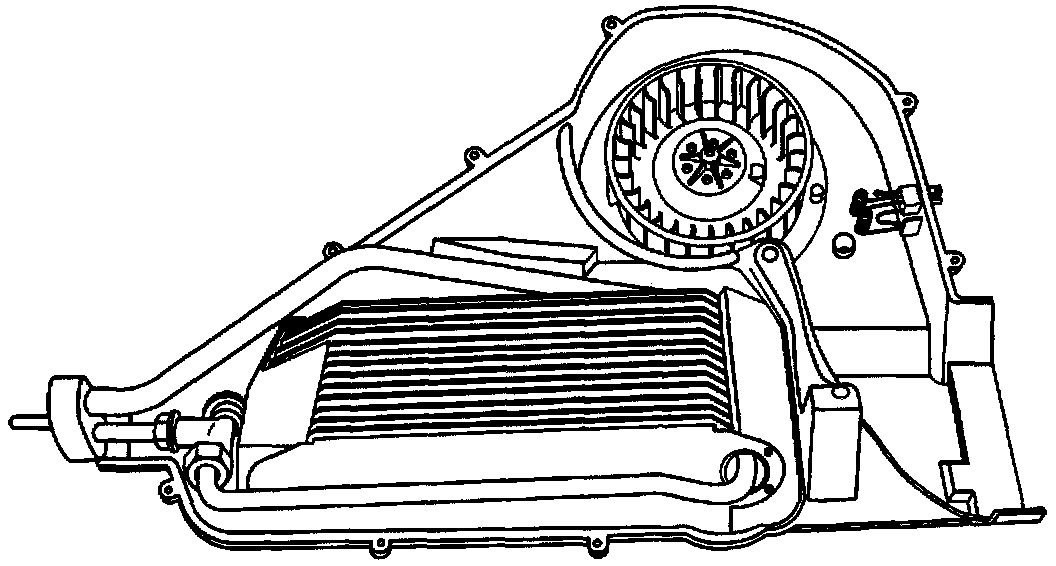

Rear A/C, Internal View:

Remove or Disconnect

1. Negative battery cable.
2. Left body side rear trim panel.
3. Electrical connector.
4. Two screws retaining resistor to case.
5. Blower motor resistor from case.

Install or Connect

1. Blower motor resistor into case.
2. Two retaining screws.
3. Electrical connector.
4. Left body side rear trim panel.
5. Negative battery cable.
