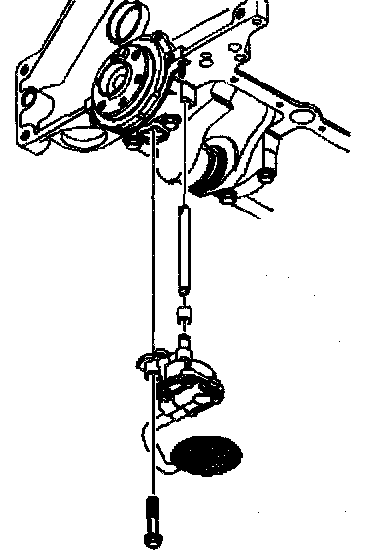

Oil Pump Removal

1. Remove the bolt that attaches the oil pump to the rear crankshaft bearing cap.





2. Remove the oil pump driveshaft and the retainer.
3. Separate the oil pump, driveshaft, and retainer.
4. Discard the retainer.
