Chevy Truck
>>
1997
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
System Diagram
>>

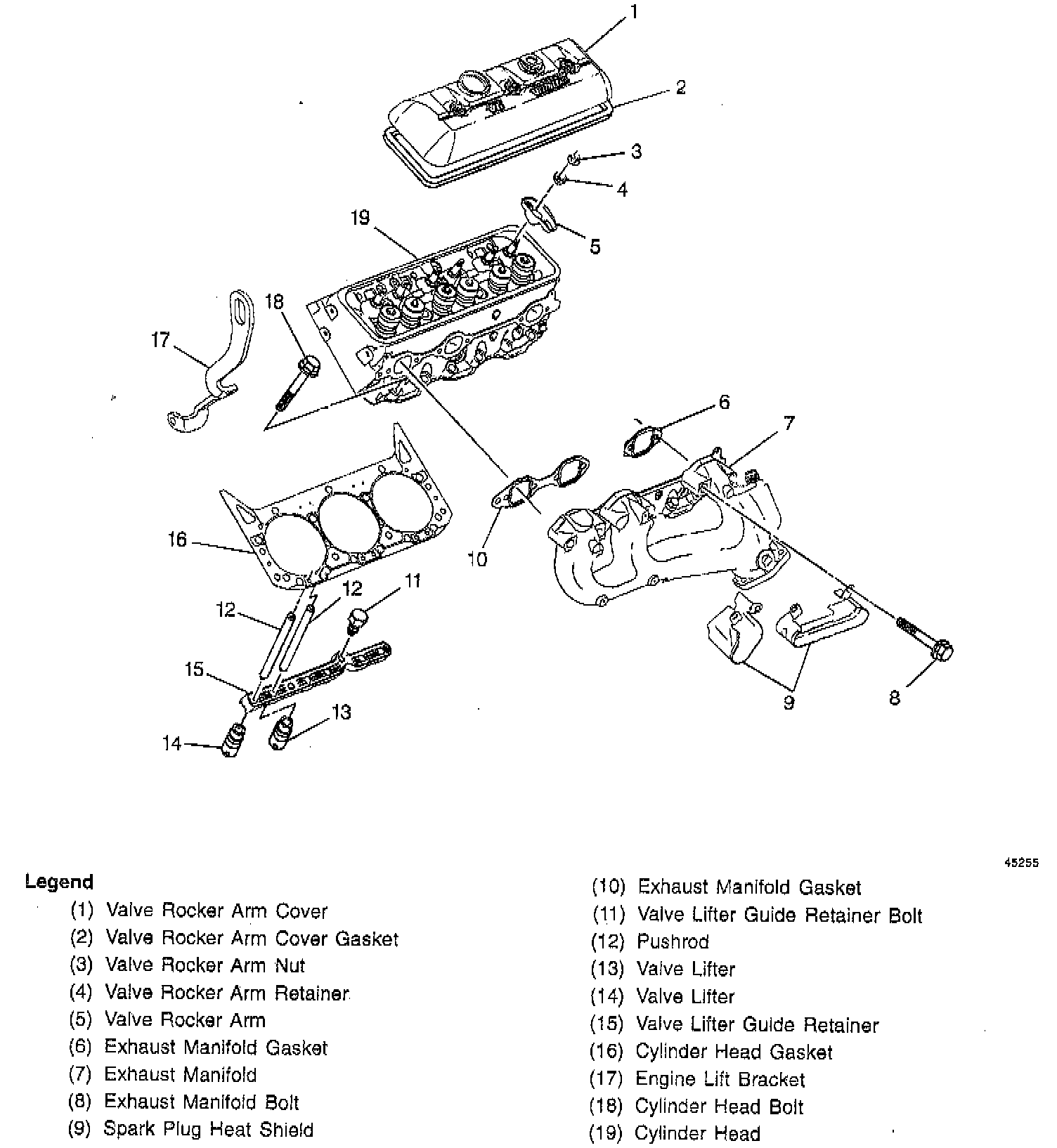

Upper Engine View
Upper Engine View
Upper Engine View 1:
Upper Engine View 2:
