Home >> Chevy Truck >> 1997 >> Astro Van L AWD V6-4.3L VIN W >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Intake Manifold

Intake Manifold

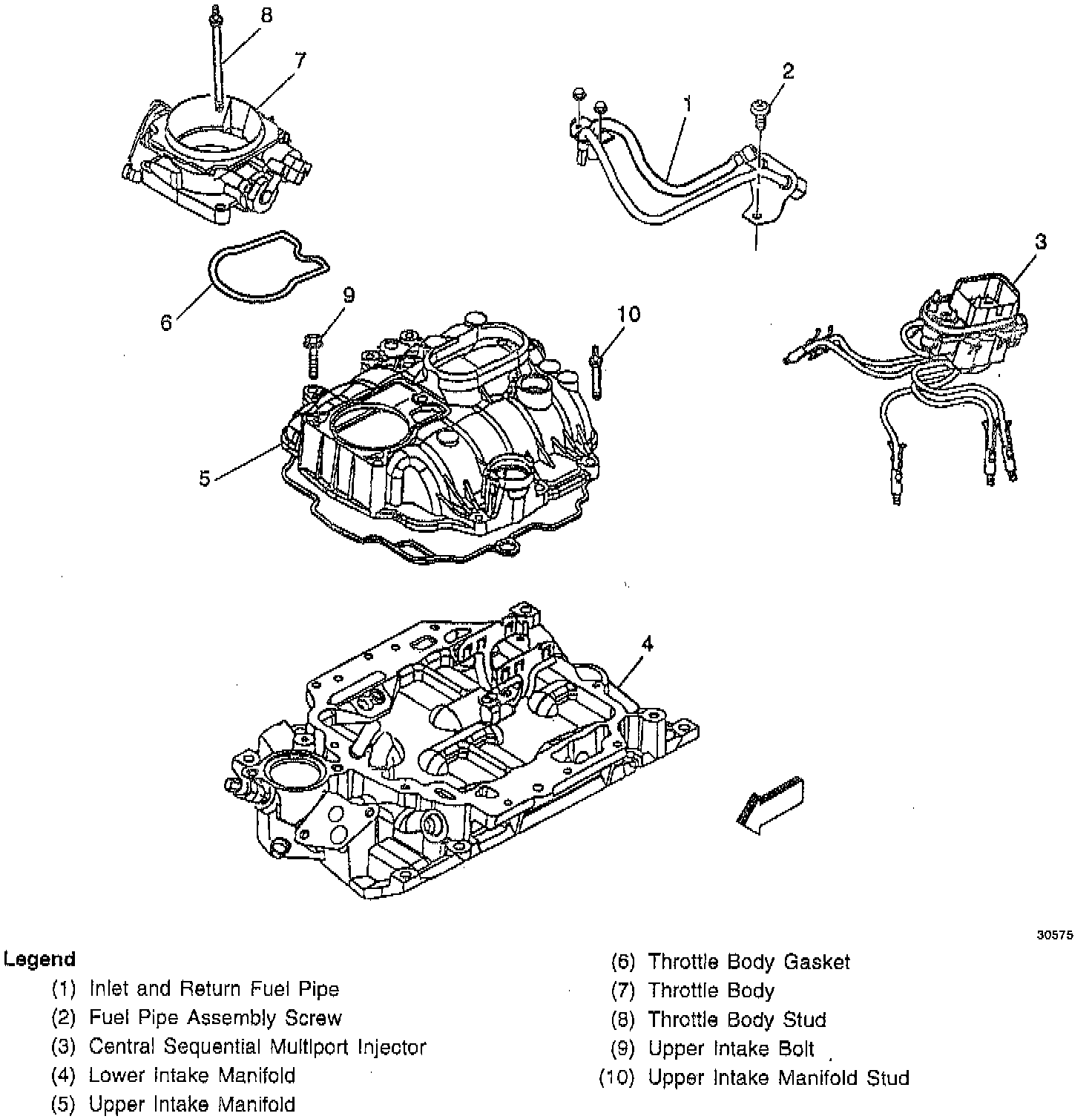

Upper Engine View 2:
