Home
>>
Chevy Truck
>>
1997
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
System Diagram
>>

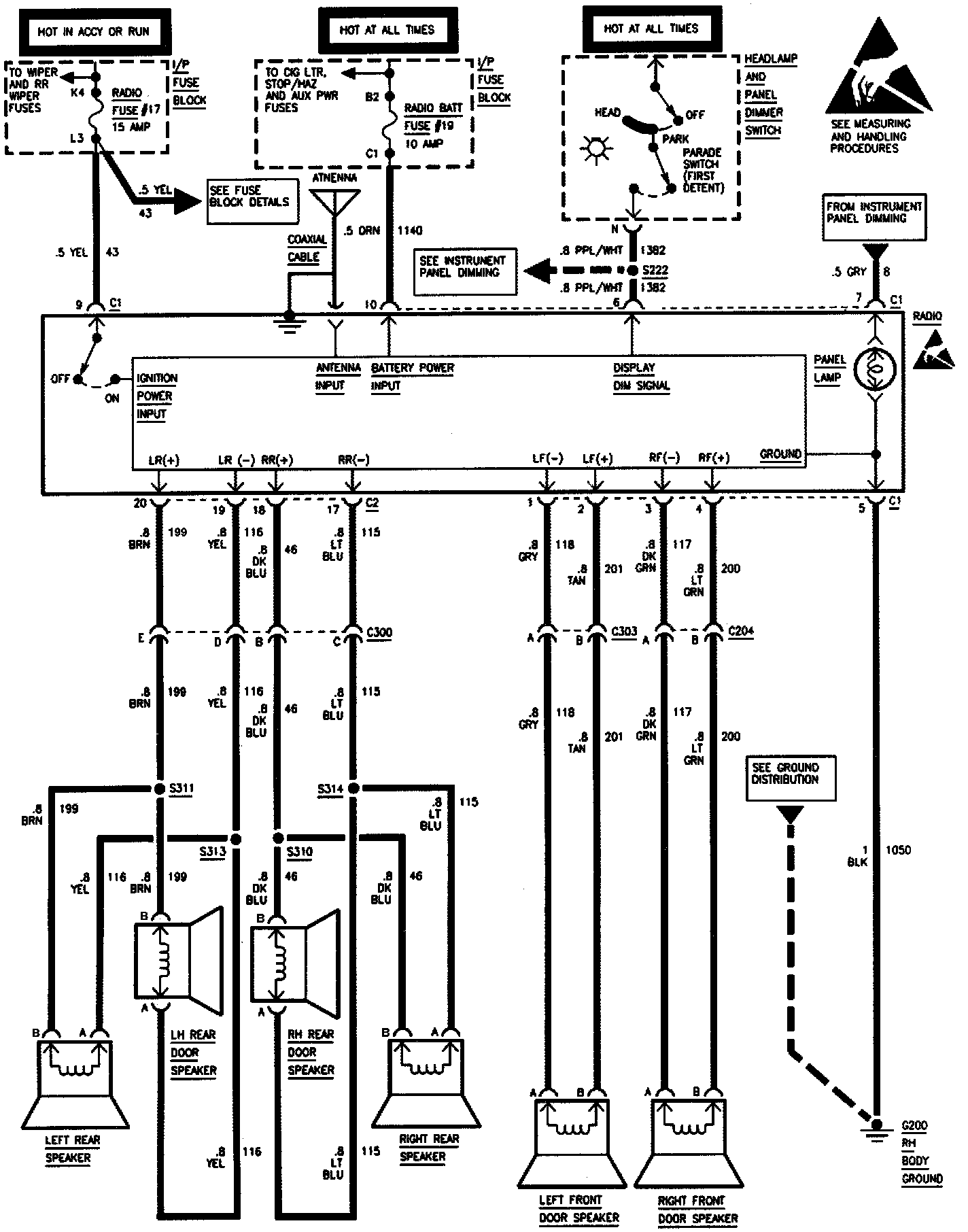

Base Radio
Base Radio
Radio/Audio Systems: Base Radio:
