Home >> Chevy Truck >> 1997 >> Astro Van L AWD V6-4.3L VIN W >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Fuel Delivery & Controls >> Fuel Mixture Input Controls

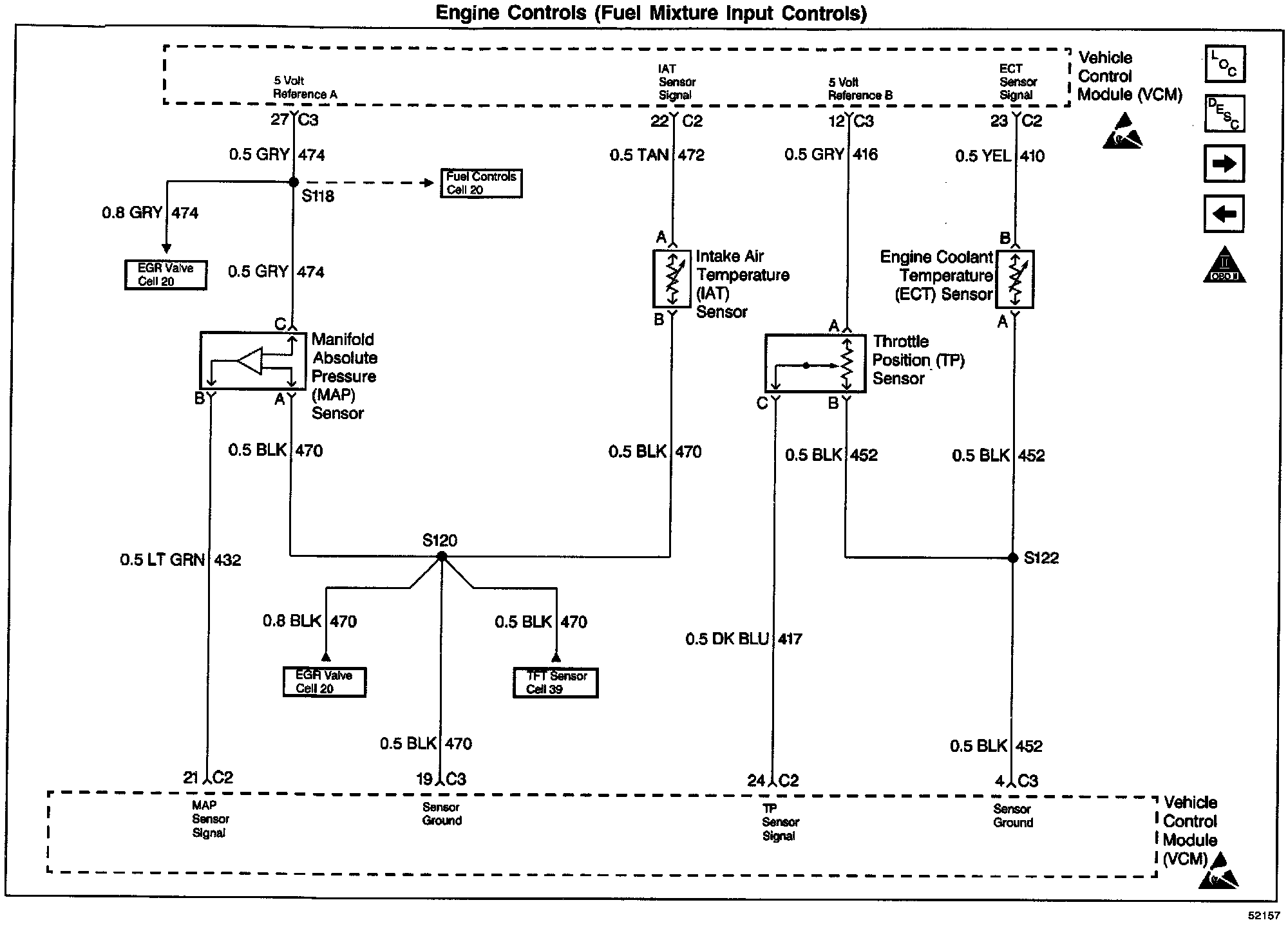

Fuel Mixture Input Controls

Wiring Diagram:
