Chevy Truck
>>
1997
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
>>
Electronic Diagnostics
Electronic Diagnostics

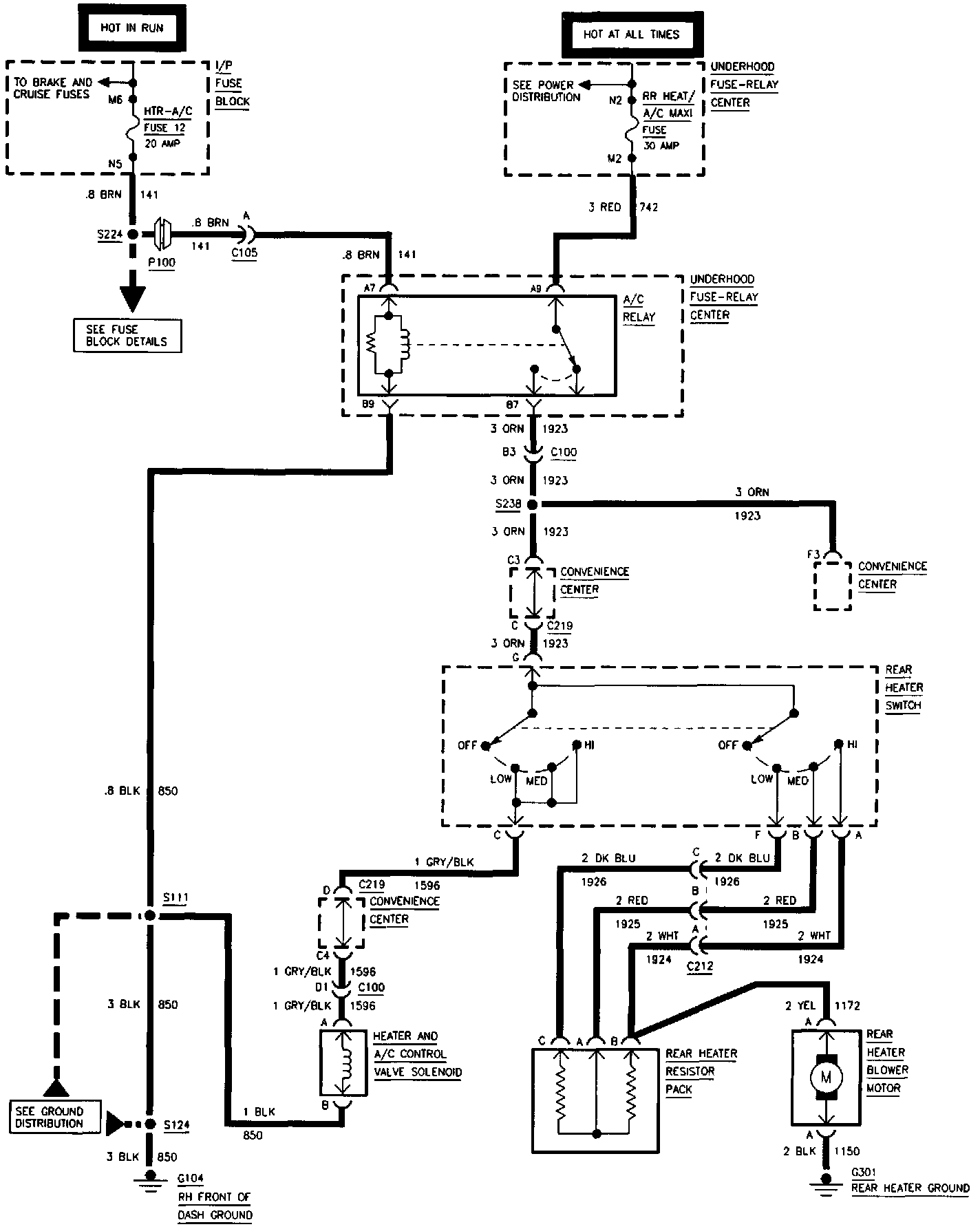

Rear Heater:
