Master Cylinder Replacement

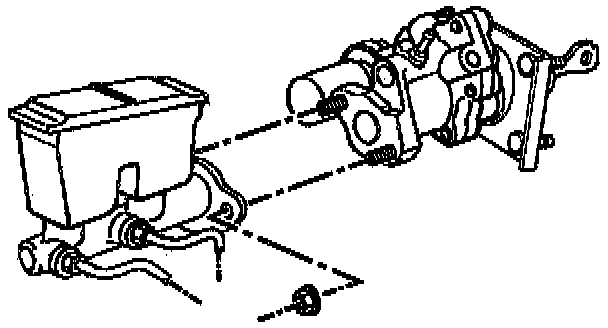

Master Cylinder Mounting:

Remove or Disconnect
^ Apply the parking brake.
1. Brake pipes.
^ Cover the ends of the pipes to prevent dirt from entering the system.
2. Nuts.
3. Master cylinder.

Install or Connect
^ Before installation, refer to Bench Bleeding. Master Cylinder Bench Bleeding
1. Master cylinder.
2. Nuts.

^ Tighten Nuts to 36 Nm (27 ft. lbs.).

3. Pipes.

Tighten Pipe fittings to 20 Nm (15 ft. lbs.).

^ Bleed the brakes. Refer to Hydraulic Brake System. Bleeding the System
^ Release parking brake.
