Brake Hose Replacement

FRONT BRAKE PIPE REPLACEMENT

CAUTION: Always use doubled walled steel brake pipe when replacing brake pipes. The use of any other pipe is not recommended and may cause brake system failure. Carefully route and retain replacement brake pipes. Always use the correct fasteners and original location for replacement brake pipes. Failure to properly route and retain brake pipes may cause damage to the brake pipes and brake system failure. Brake pipes that run parallel to each other must maintain a 6 mm(1/4 inch) clearance.

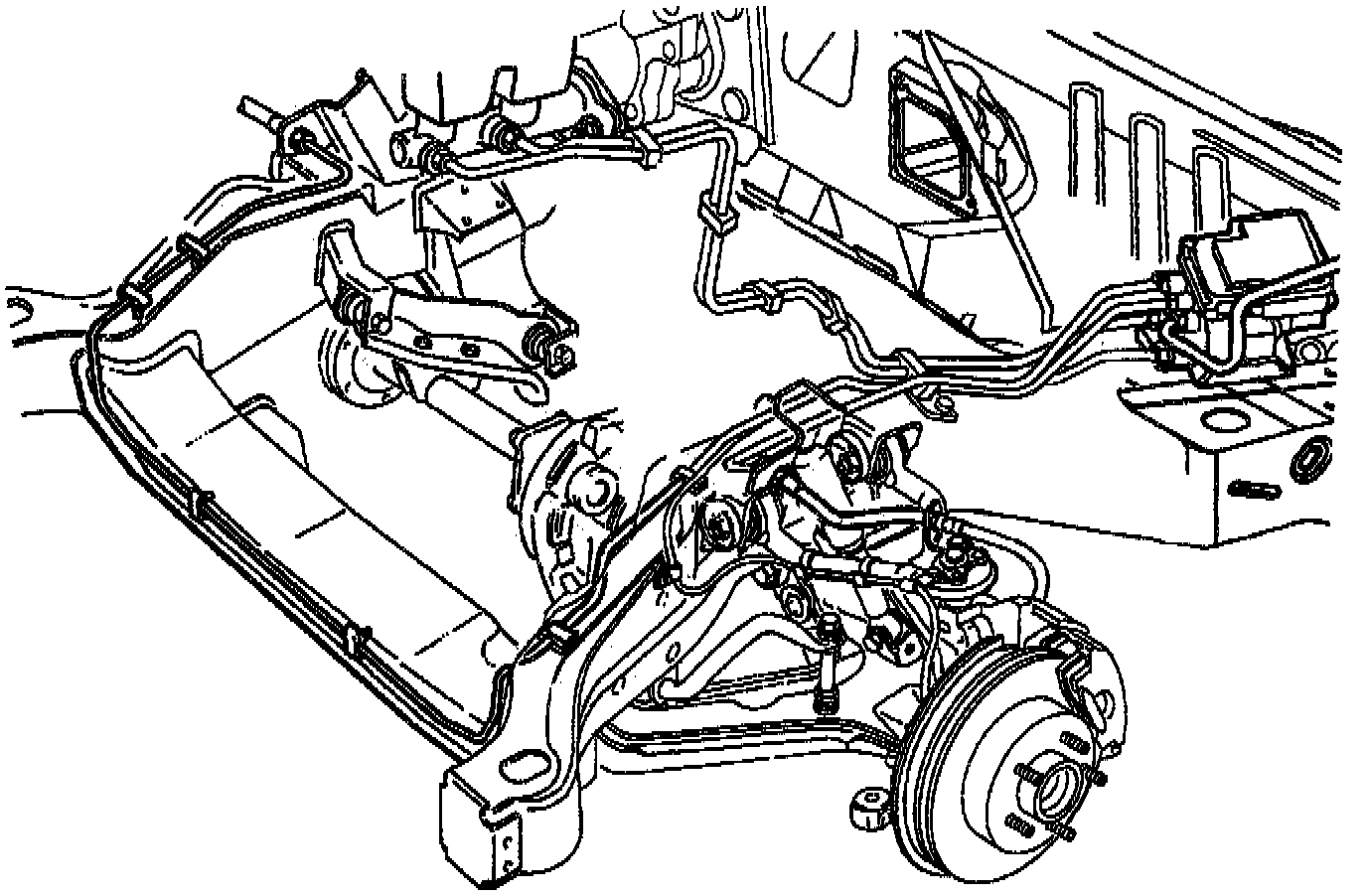

Front Brake Pipes:
