Power Door Lock Relay: Service and Repair

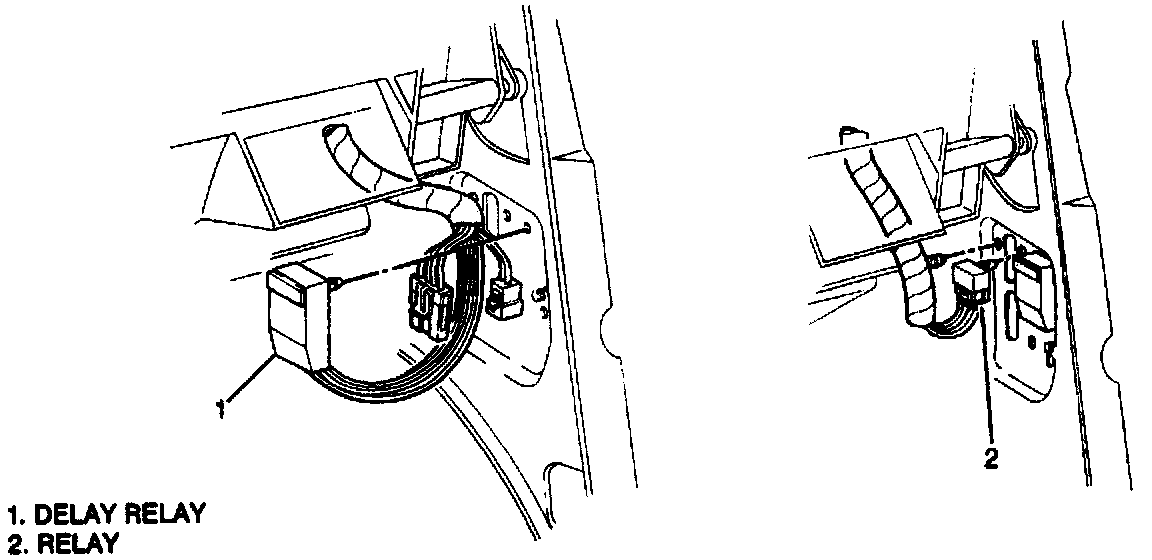

Power Door Lock Relays:

Remove or Disconnect
1. Negative battery cable.
2. Right cowl side trim panel.
3. Power door lock delay relay and/or power relay from electrical connector on the harness.
4. Delay relay and/or power relay from cowl side panel by releasing barbed retainer.

Install or Connect
1. Power door lock delay relay and/or power relay to cowl side panel by snapping barbed connector into place.
2. Delay relay and/or power relay electrical connector(s).
3. Right cowl side trim panel.
4. Negative battery cable.
