Home >> Chevy Truck >> 1997 >> Astro Van L AWD V6-4.3L VIN W >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Diagrams >> Electrical Diagrams >> Side Door Controls

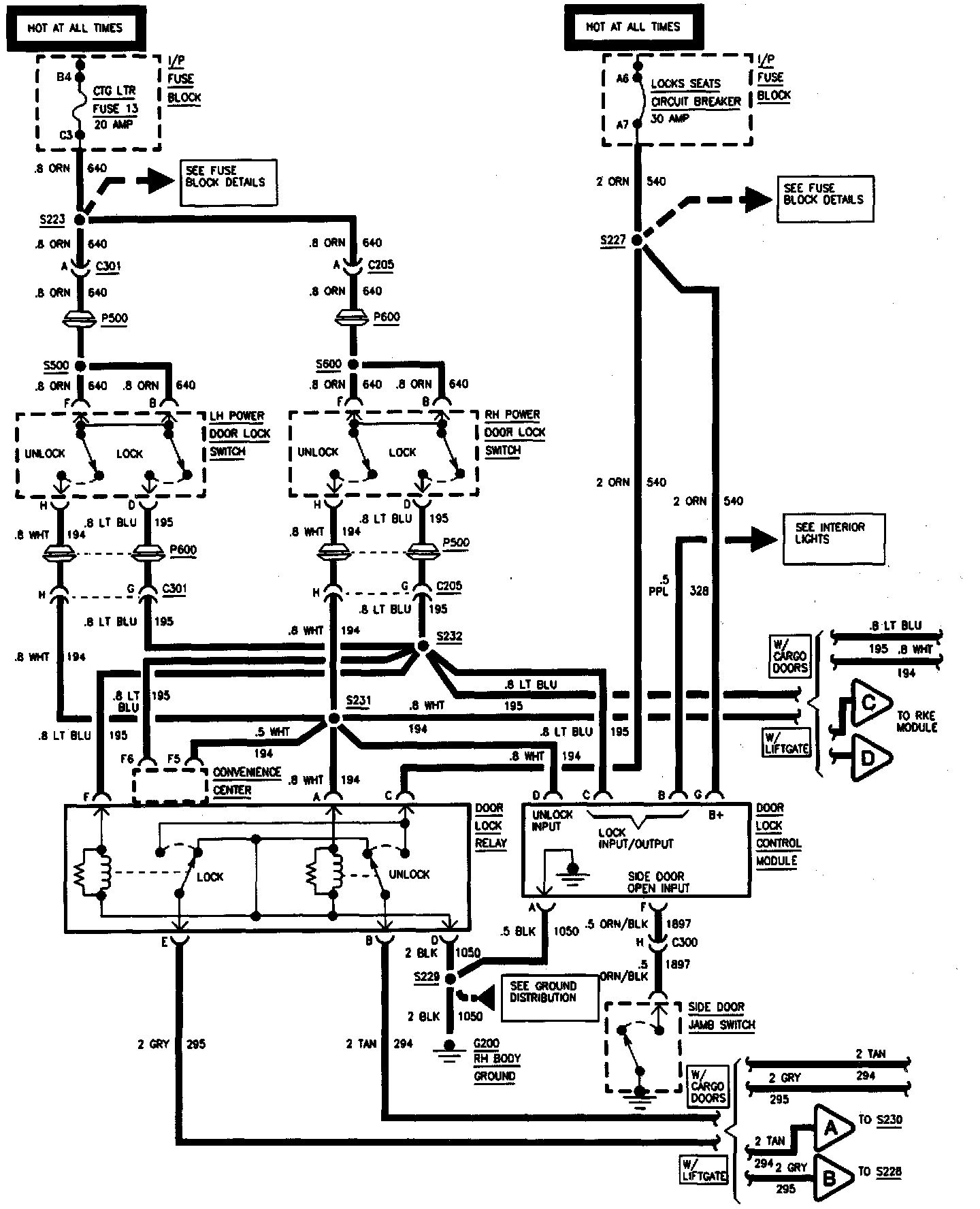

Side Door Controls

Remote Control Door Lock Receiver: Side Door Controls:
