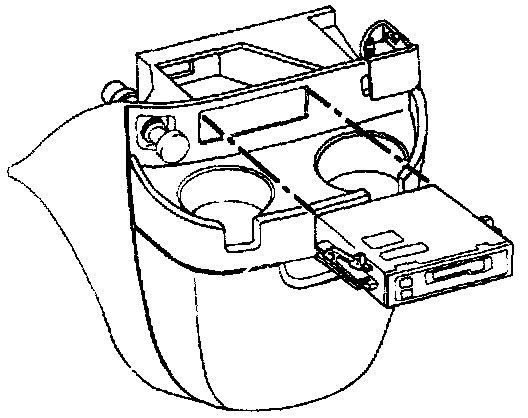

Remote Cassette Player Replacement

Remote Cassette Player Replacement:

REMOVE OR DISCONNECT
1. I/P extension trim plate.
2. Remote cassette player by squeezing fasteners on both sides of the player and pulling out.
3. Electrical connectors.

Remote Cassette Player Replacement:

INSTALL OR CONNECT
1. Electrical connectors.
2. Remote cassette player by aligning fasteners with slots in I/P extension and sliding into place until fasteners are fully seated.
3. I/P extension trim plate.
