Functional Tests

1. Verify transmitter battery voltage and connection integrity by depressing the transmitter button. The red LED indicator should illuminate.
A. If no LED indicator response - remove garage door transmitter and check for B+ at leads.
B. If B+ - replace transmitter.

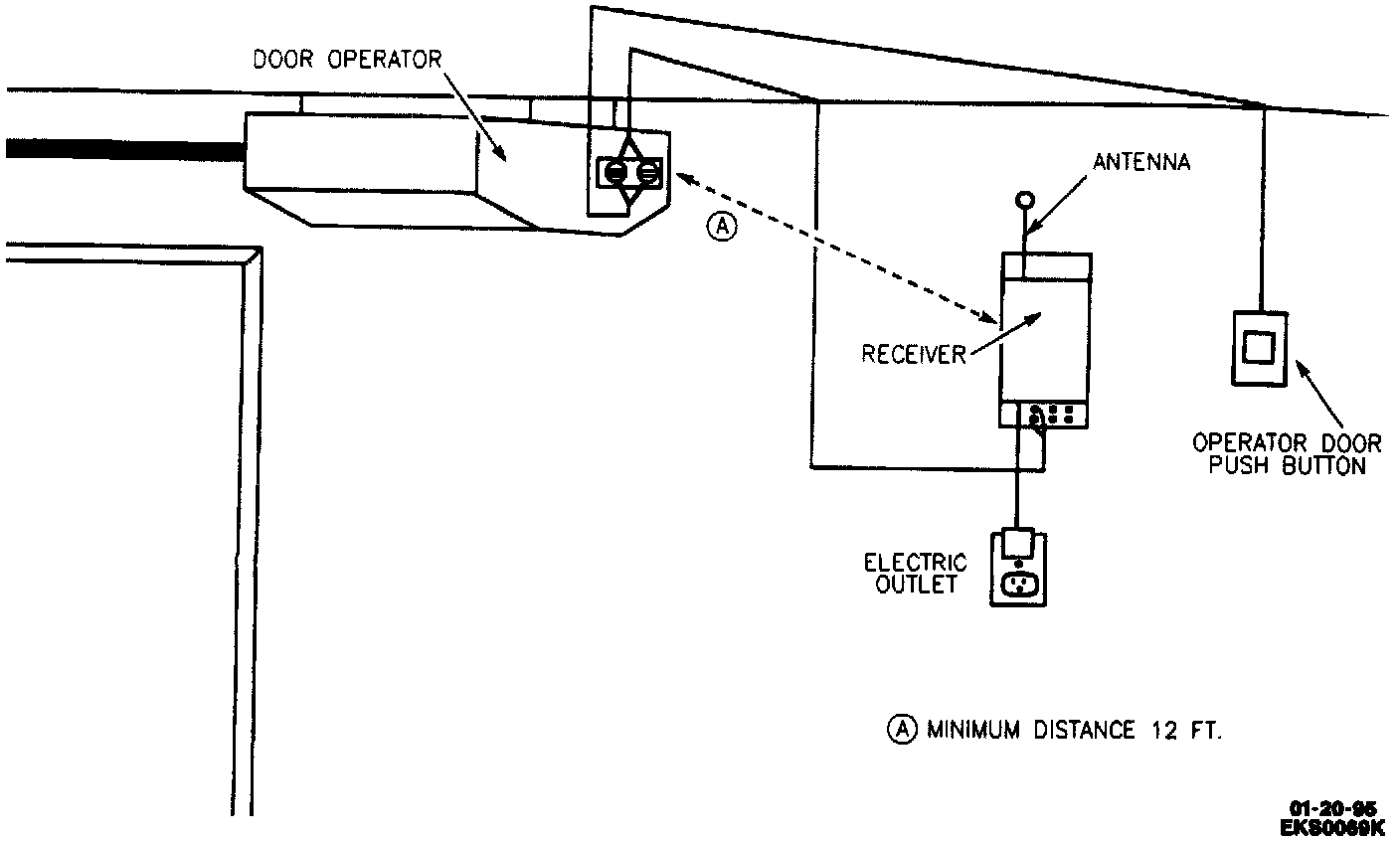

Garage Door Receiver Installation:

C. If no B+ - check circuit.
