Module Replacement

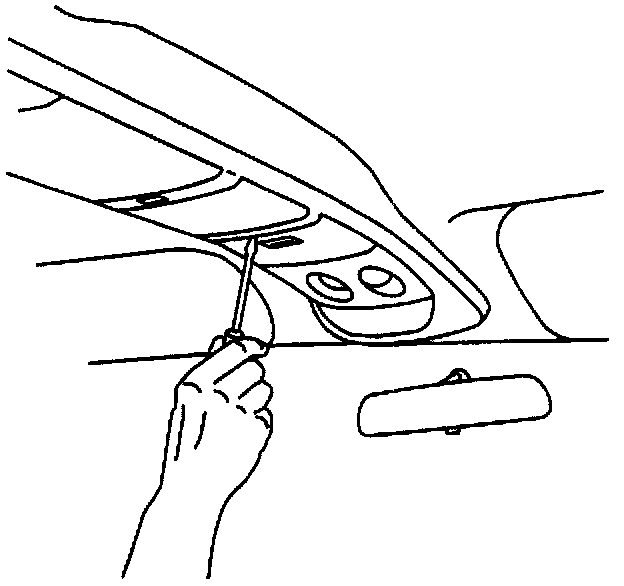

Releasing The Module Access Door:

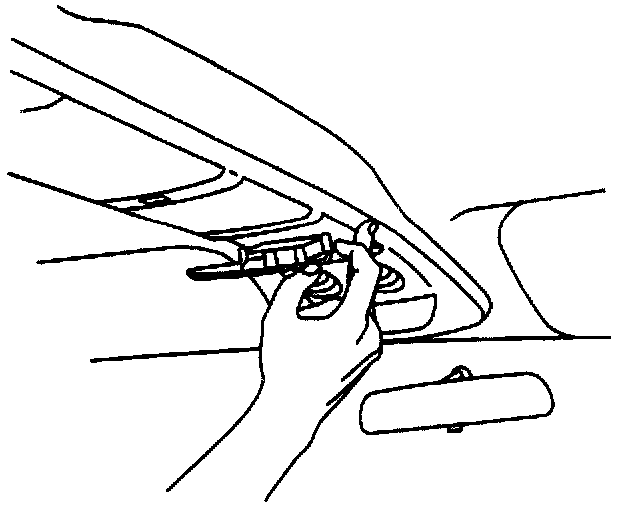

Removing The Module From The Console:

Opening The Module Access Door:

REMOVE OR DISCONNECT
1. Open access panel by releasing the barbed tab at the center of the access panel and swinging the panel down and forward.
2. Electrical connector from the module and switch assembly.
3. Two screws retaining module and switch assembly to console.
4. Module and switch assembly from the console.

Releasing The Module Access Door:

Removing The Module From The Console:

Opening The Module Access Door:

INSTALL OR CONNECT
1. Module and switch assembly to the console.
^ Align the LED indicator with the hole in the access panel when setting the module into place.
2. Two screws retaining the module and switch assembly to the console.
3. Electrical connector to the module and switch assembly.
4. Close the access panel by swinging the panel up and rearward until the barbed tab snaps into place in the console.
5. Perform functional test.
