C0035

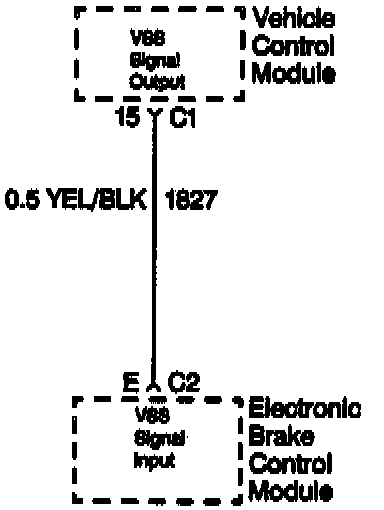

DTC C0035 Circuit Diagram:

CIRCUIT DESCRIPTION
The rear wheel speed signal originates from the Vehicle Speed Sensor (VSS) which is connected to the Vehicle Control Module (VCM). The Electronic Brake Control Module (EBCM) receives the rear wheel speed signal from the VCM.

CONDITIONS FOR SETTING DTC
EBCM not seeing the correct voltage level from the VCM at start-up.

ACTION TAKEN WHEN DTC IS SET
- ANTILOCK indicator lamp is illuminated
- Antilock Brake System (ABS) is disabled

DIAGNOSTIC AIDS
A fault in circuit 1827 can cause this DTC to set.

NOTE: If the voltage readings are low or varying, the battery, charging system, or intermittent connections could be the cause. Check these areas before replacing any components.


DTC CHART TEST DESCRIPTION

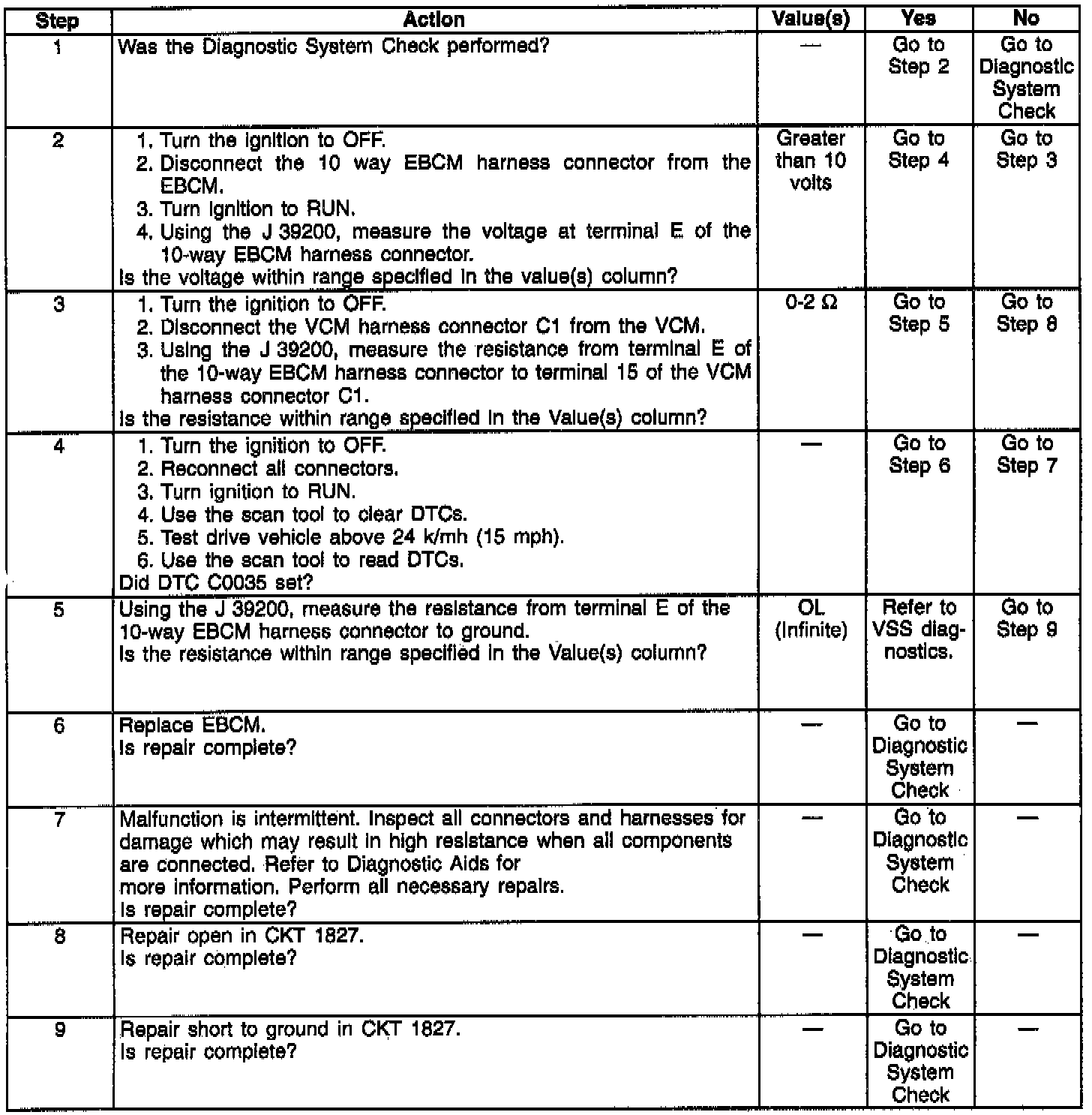

DTC C0035 Diagnostic Chart:

NOTE: Number(s) below refer to number(s) on the diagnostic chart.

1. Measure the voltage at terminal E of the EBCM.
3. Check for an open in circuit 1827.
5. Check for a short to ground in circuit 1827.
