Chevy Truck
>>
1995
>>
Tahoe 2WD V8-393 6.5L DSL Turbo VIN S
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

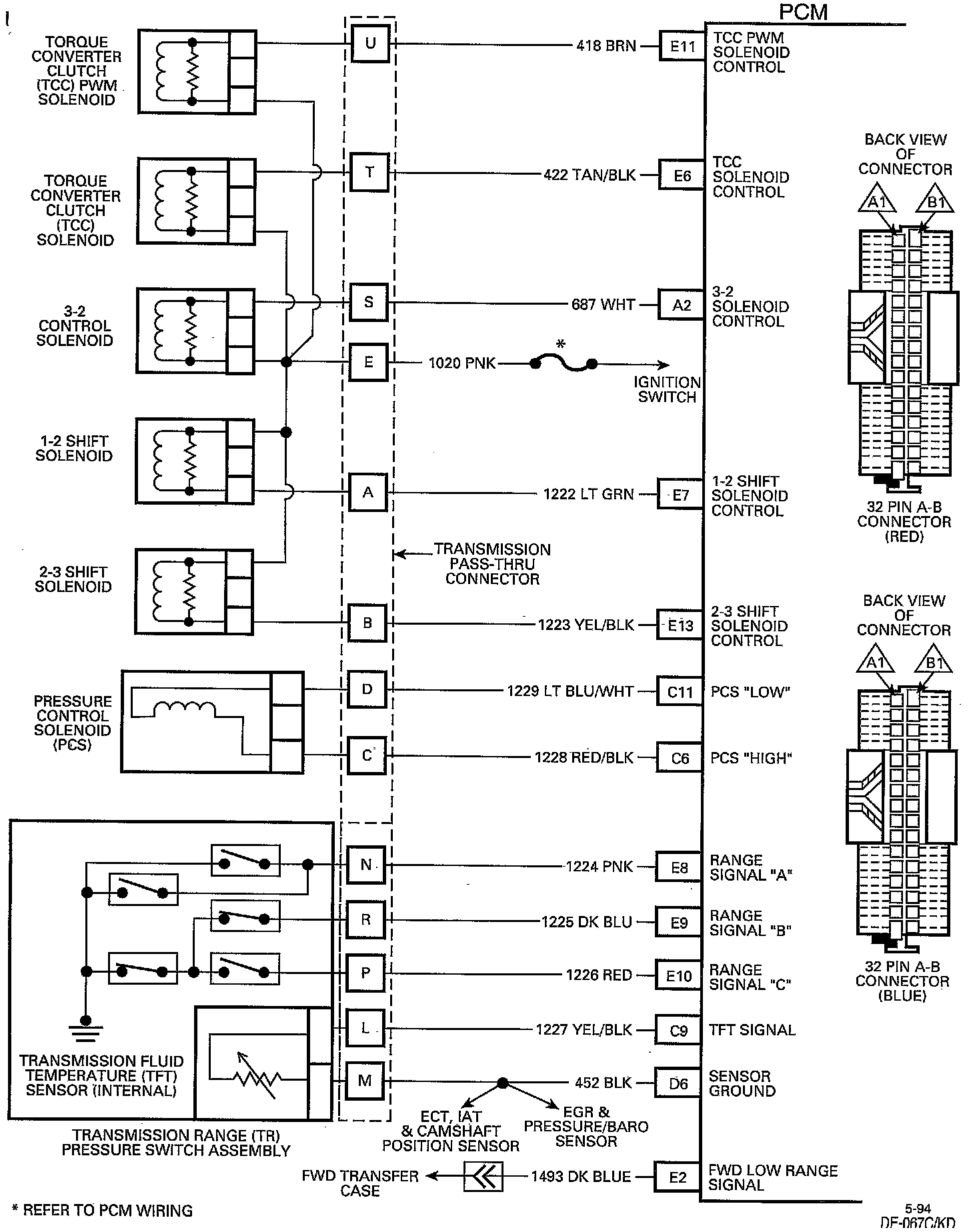

PCM Wiring Diagram 4L60E:
