Inner CV Joint (Tripot Housing) Replacement

INNER CV JOINT/BOOT (TRIPOT HOUSING) REPLACEMENT

TOOL REQUIRED:
* J 8059 Snap Ring Pliers J 35910 Boot Clamp Tool

DISASSEMBLE
* Place the drive axle in a vise using protective covers over the vise jaws.

1. Boot clamp protectors.
2. Clamps.
* Cut the clamps with side cutters to remove. For swedge ring removal, use a hand grinder to cut through the ring taking care not to damage the housing.
3. Axle shaft with spider assembly from the housing.

CLEAN
* Thoroughly clean the tripot housing and rollers. Allow to dry completely before reassembly.

IMPORTANT: Handle the tripot spider assembly with care. The tripot needle rollers may separate from the spider trunnions.

INSPECT
* Rollers, needle bearings, trunnions, and housing for unusual wear, cracks, or other damage. Replace as required.

4. Spacer ring using J 8059.
* Slide the spacer ring back on the axle shaft then slide the spider assembly back to expose the snap ring.

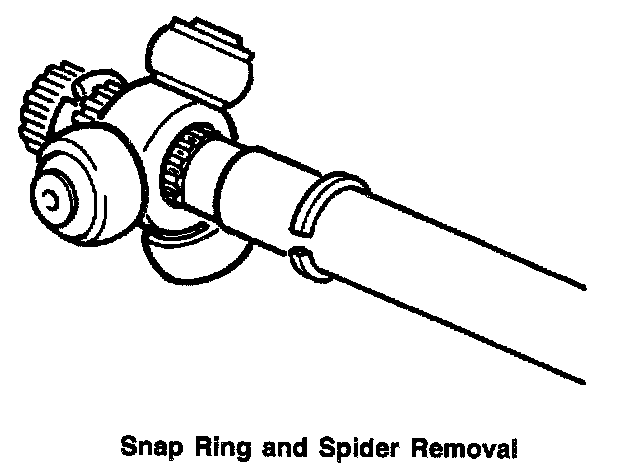

5. Snap ring using J 8059.
6. Spider assembly.

CLEAN
* Old grease from the housing.
* Rust from the boot mounting grooves if any is present Use a wire brush.

ASSEMBLE

TOOLS REQUIRED:
* J 8059 Snap Ring Pliers J 35910 Clamp Installer

1. Small boot clamp.
2. Inboard boot to the axle shaft.
3. Spider assembly to the axle shaft.

* Make sure the snap ring counterbore faces the housing end of the axle.

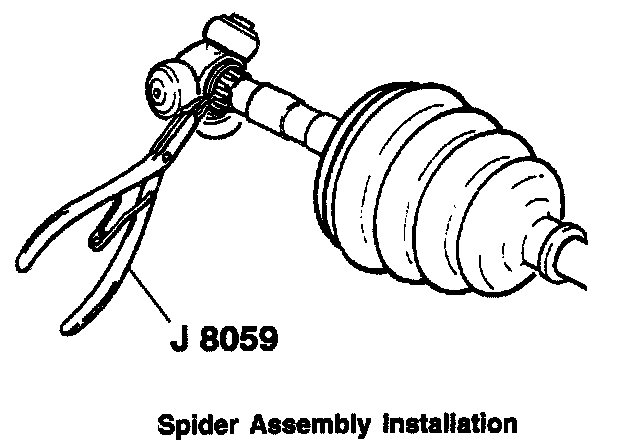

4. Snap ring using J 8059).

5. Spacer ring using J 8059.
* Make sure the spacer ring is fully seated in the groove.

TIGHTEN
* Small boot clamp to 136 Nm (100 lbs. ft.).

MEASURE
* Clamp ear gap dimension.

* Repack the housing with about half of the grease furnished in the boot kit. Put the remainder of the grease in the boot.
* Coat the inside of the boot sealing lips with grease.

6. Axle shaft with spider assembly to the housing.

IMPORTANT

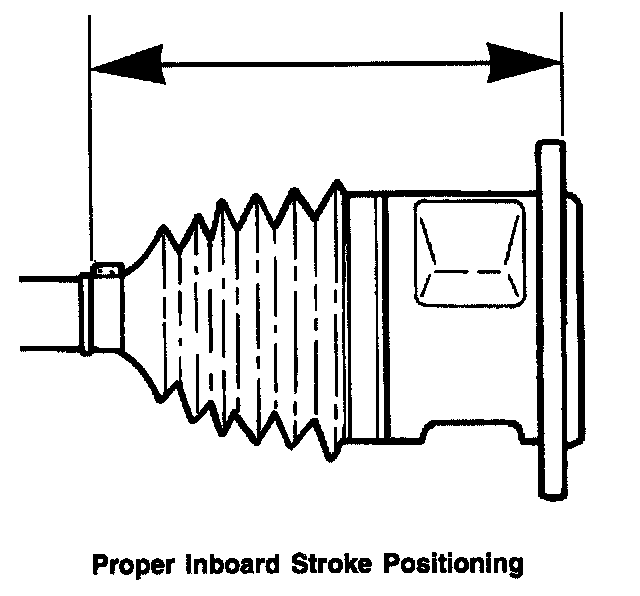

* The joint must be assembled to 160 mm (6.250 in.) or boot damage may occur.

7. Clamp with J 35910.

TIGHTEN
* Clamp to 176 Nm (130 lbs. ft.)

MEASURE
* Clamp ear gap dimension.
