EGR Electronic Vacuum Regulator Solenoid: Service and Repair

EGR And EVRV Solenoid:

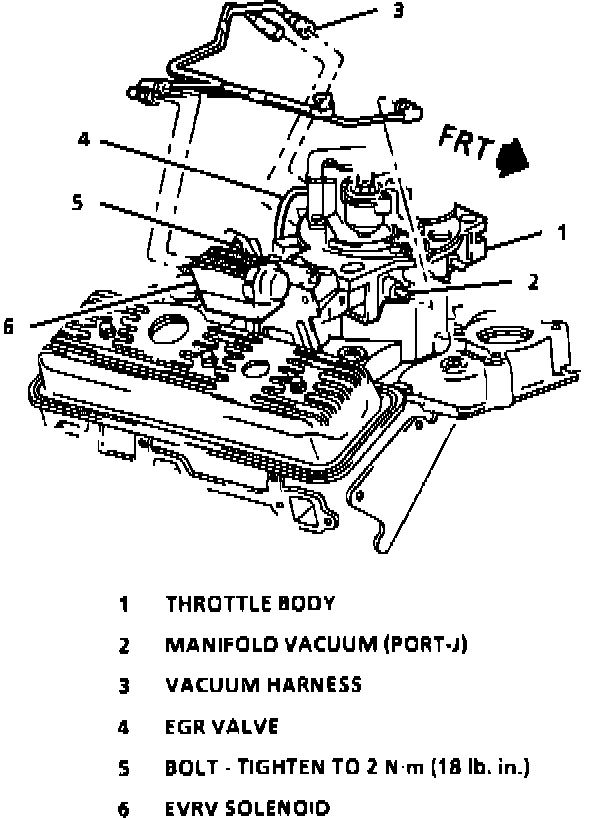

EGR Control Solenoid (EVRV):

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Air cleaner, if necessary.
3. Electrical connector at solenoid.
4. Vacuum hoses.
5. Bolt(s) and solenoid.
6. Filter, if required.

INSTALL OR CONNECT
1. Filter, if required.
2. Solenoid. Tighten bolts to 24 Nm (17 lb. ft.).
3. Vacuum hoses.
4. Electrical connector.
5. Air cleaner, if removed.
6. Negative battery cable.
