Manual Transmission (M/T) Controls

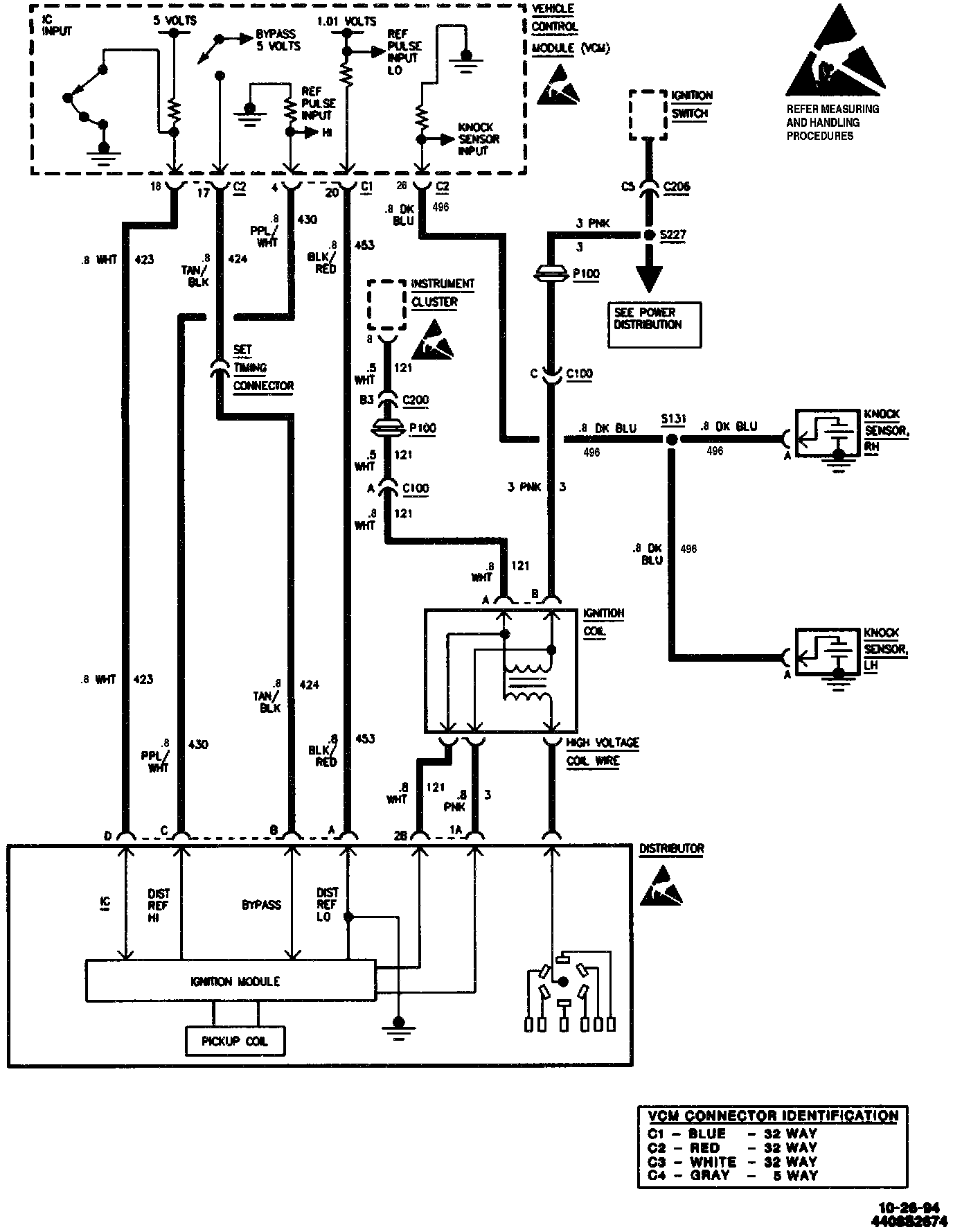

Throttle Body Injection (VCM):

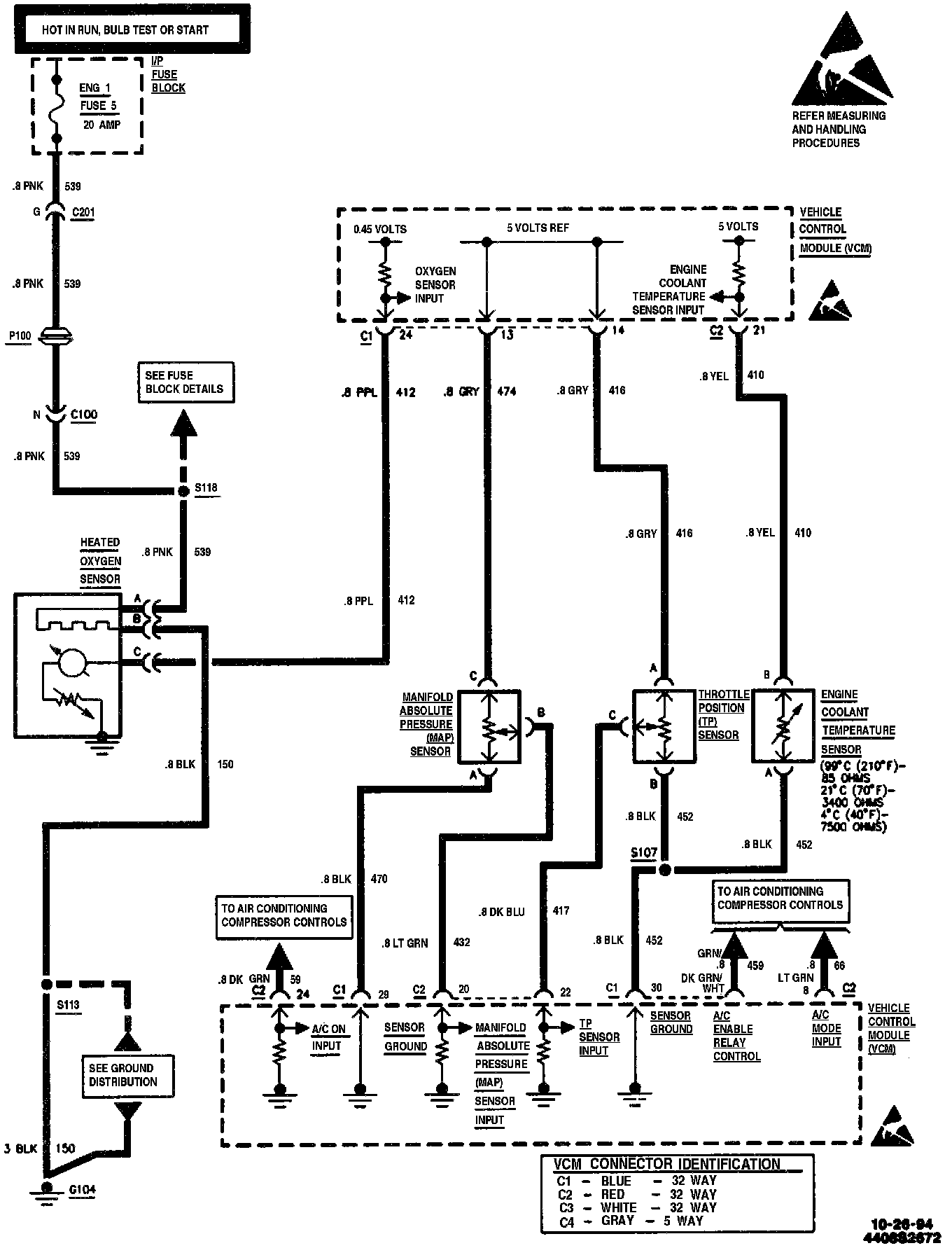

Throttle Body Injection (VCM):

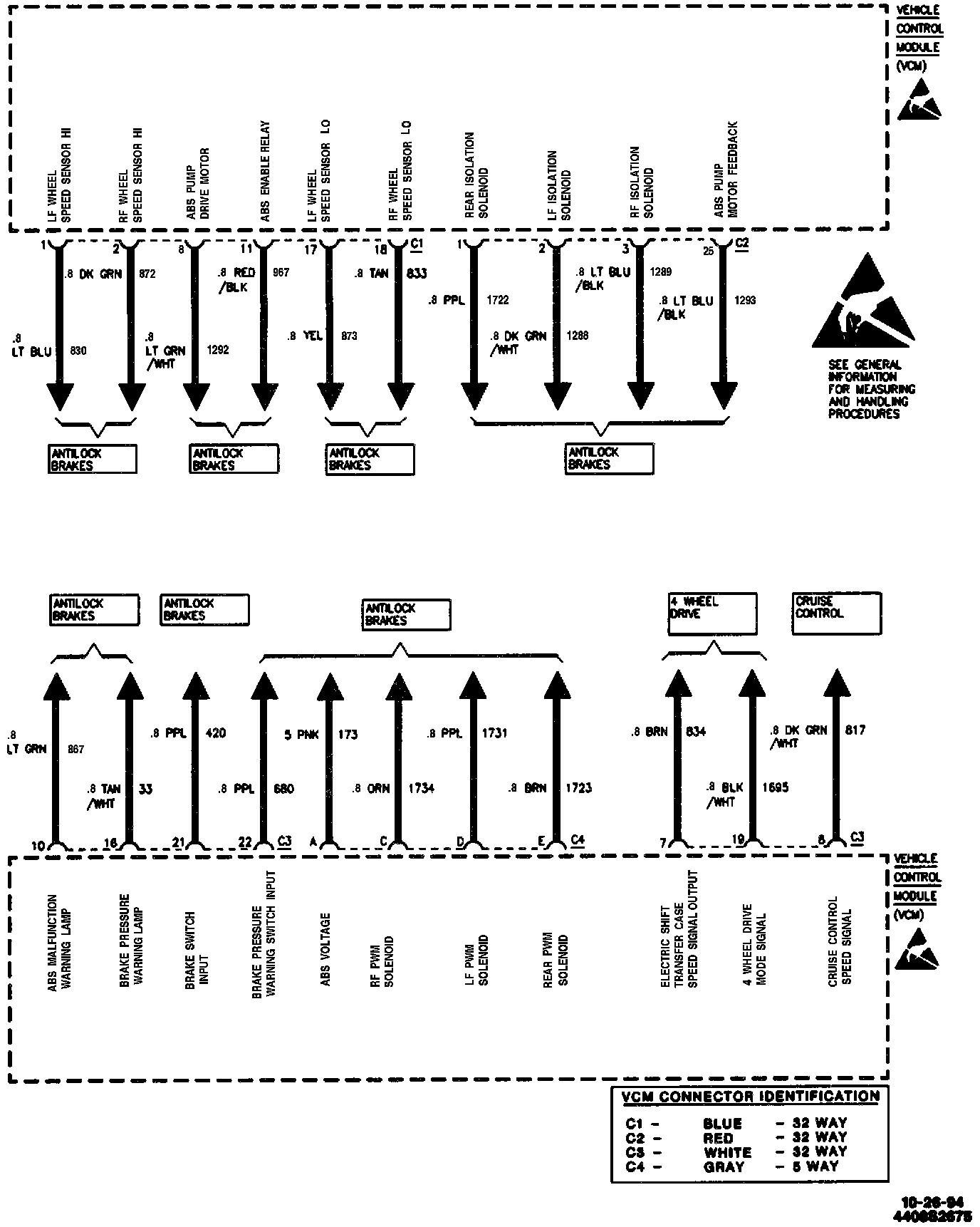

Throttle Body Injection (VCM):

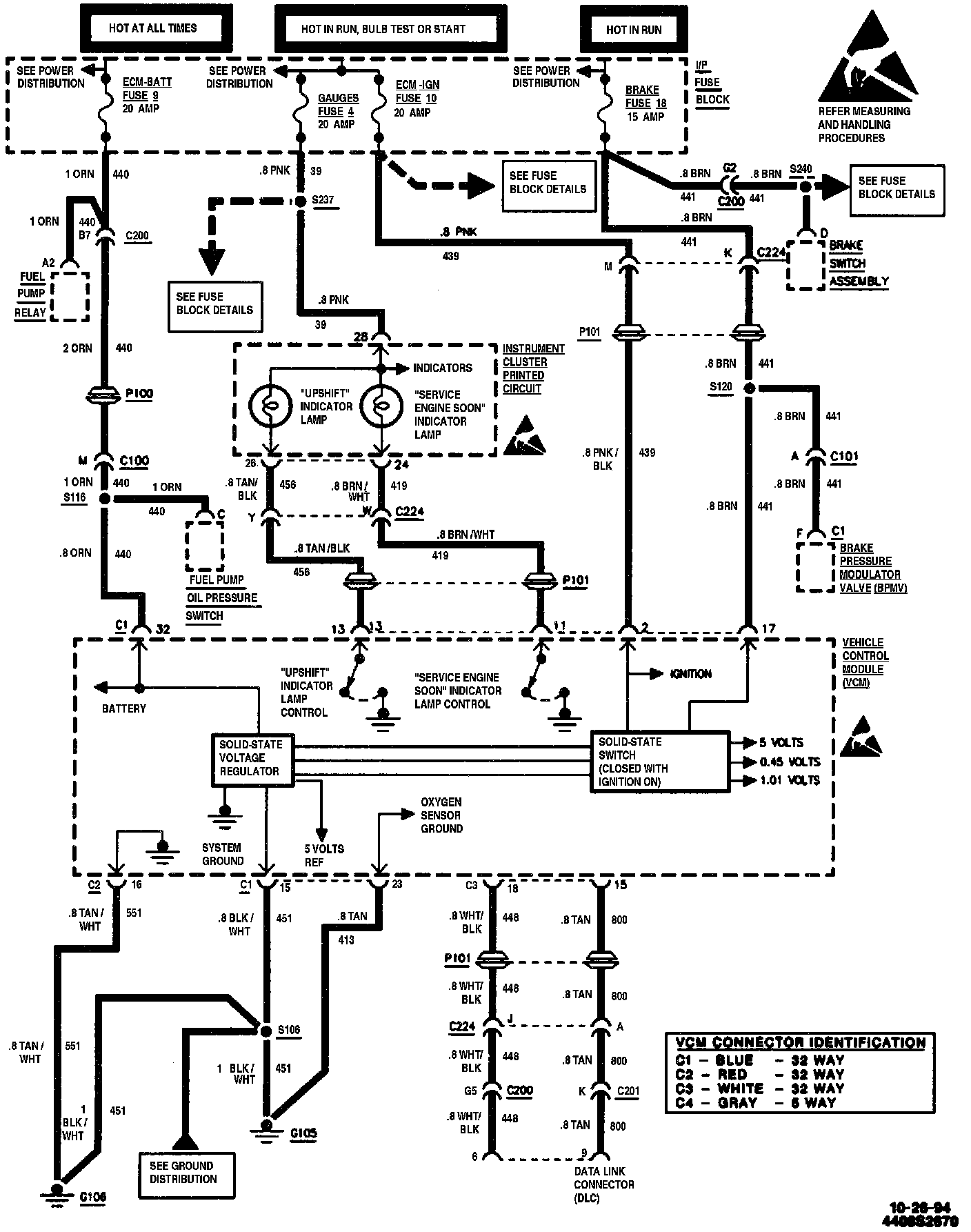

Throttle Body Injection (VCM):

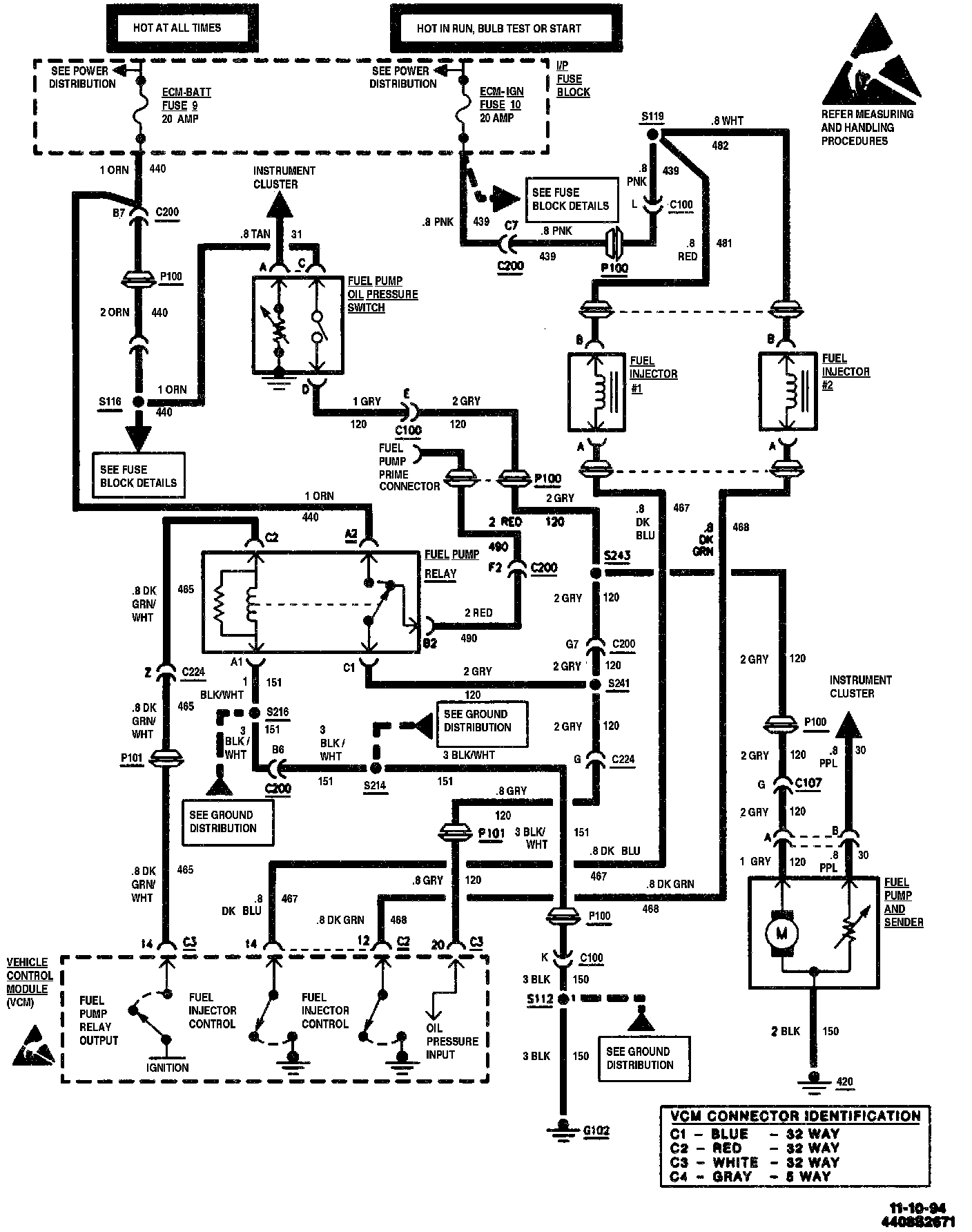

Throttle Body Injection (VCM):




Throttle Body Injection (VCM):
